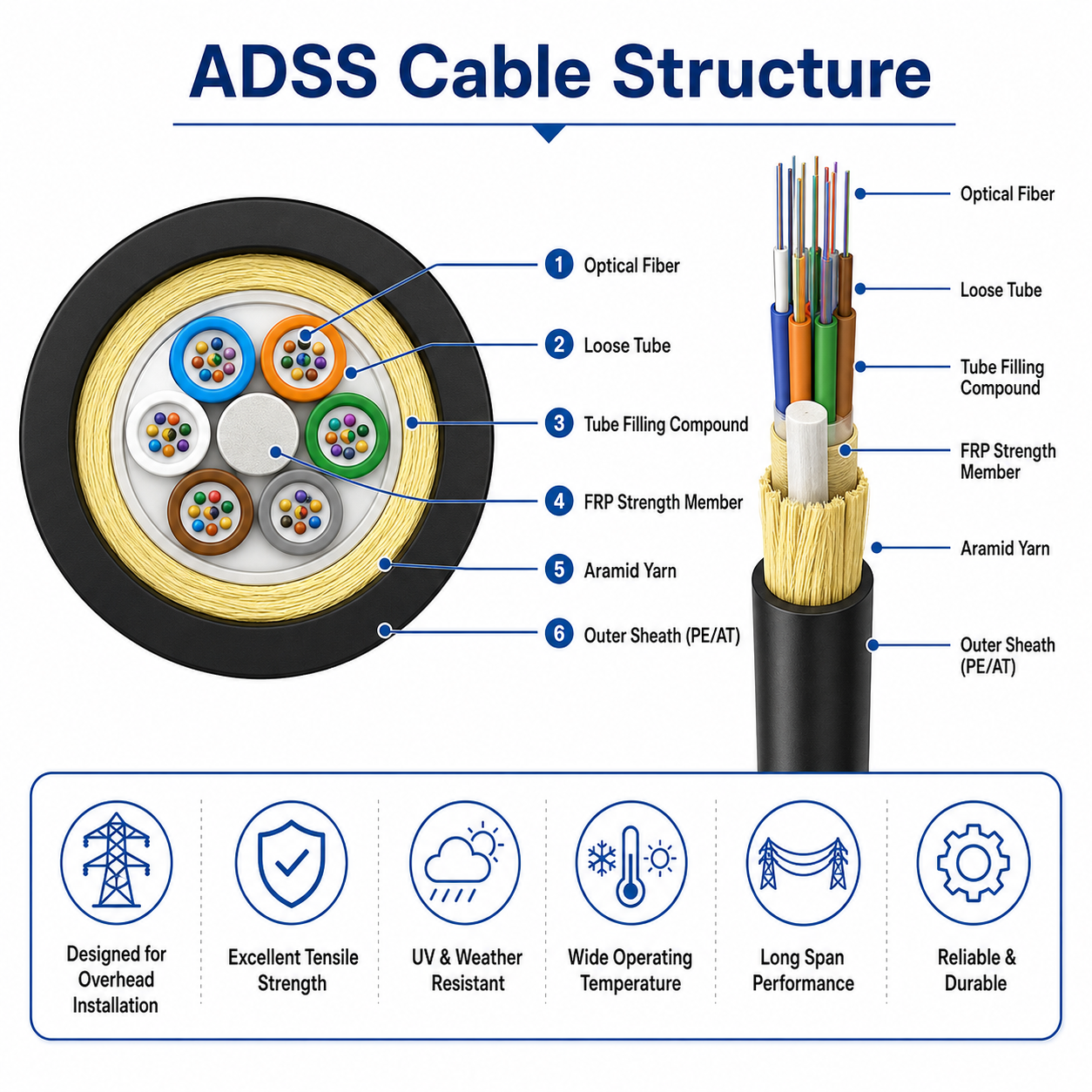

Drawing and fibre BOM
2 to 288 cores, common options 12 / 24 / 48 / 96 / 144 cores
ADSS Fiber Optic Cable
ADSS Aerial Fiber Cable
ADSS aerial fiber cable is designed for outdoor self-supporting installation on poles, helping telecom contractors build reliable overhead fiber routes without metallic strength members.
Product Information
Key Features & Specifications
Common selection references are shown for orientation; final model parameters, construction and availability are confirmed in the quotation and agreed technical documents before ordering.
Main Features
- Factory supply for telecom and FTTH projects
- Custom specifications available according to order requirements
- Matched with related installation materials when needed
- Export packing and product marking support
Technical Specifications
| Fiber Count | 2 to 288 cores, common options 12 / 24 / 48 / 96 / 144 cores |
|---|---|
| Span | 50 m to 1,000 m, confirmed by route, wind and ice load |
| Jacket | Black PE / HDPE; anti-tracking sheath available for power line environments |
| Core Type | Single mode G.652D / G.657A1 / G.655 optional |
| Strength Member | Aramid yarn, all-dielectric self-supporting structure |
| Packing | Wooden drum or plywood drum, drum length confirmed by order |
| Application | Aerial telecom routes, FTTH access, ISP backbone and rural broadband |
| Operating Temperature | -40°C to +70°C |
| Testing | Optical attenuation, continuity and drum inspection before shipment |
| Printing | Cable jacket marking and drum label can be customized |
| Lead Time | Usually 7 to 20 days depending on fiber count, span design and quantity |
Our factory has CE and RoHS documentation and ISO 9001 certification. Images of these documents are available on request.
Applications
Telecom network projectsFTTH access networksISP and contractor supplyDistribution and installation projects
Jiaxin Production File
Confirm the Drawing, Tests and Packing Before Release
Production checkpoints
Self-supporting aerial network routes for telecom and ISP projects
Optical and mechanical tests
Black PE / HDPE; anti-tracking sheath available for power line environments
Batch and export records
Wooden drum or plywood drum, drum length confirmed by order
Jiaxin manufacturing route
ADSS Aerial Cable: Production and Inspection Plan
Jiaxin connects the selected construction to the workshop process, test plan and export handover so the quotation can move into production without missing data.
Manufacturing checkpoints
Control fibre colouring, tube extrusion, SZ stranding, aramid application, sheath concentricity and finished-cable diameter for the confirmed span design.Inspection plan

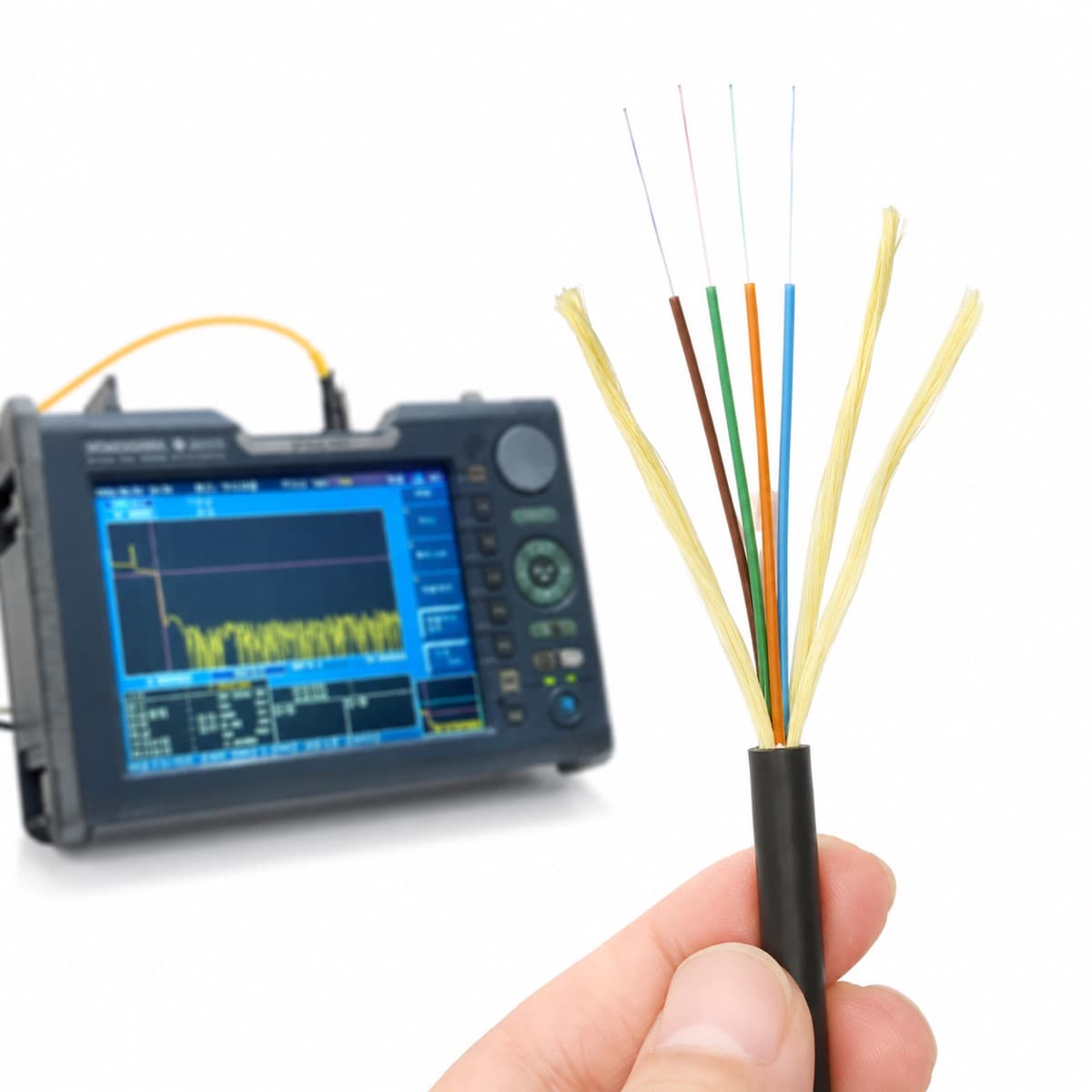

Confirm incoming fibre and material records, in-process dimensions and the final attenuation or OTDR sample plan. Mechanical tests are added according to the cable construction and contract.Export handover
Match finished quantity to drum or carton labels, jacket printing, packing photos and loading list. The buyer receives the agreed test records and shipping document set before dispatch.Technical Buyer Guide
How to Choose ADSS Fiber Optic Cable for 100m and 200m Span Routes
A practical buyer guide for selecting ADSS cable by span, fiber count, sheath, strength member and installation environment.
Download & Inquiry
Prepare Your Product Inquiry
Download the PDF catalog or use the online catalog to compare related models, then send your required fiber count, quantity and installation route.
Product FAQ
Common Buyer Questions
What information is needed to quote ADSS Aerial Cable?
Please send the model, fiber count, fiber type, quantity, installation method, packing requirement and destination port or country.
Can Jiaxin customize the cable specification?
Yes. Fiber count, sheath material, cable color, printing, packing and related accessories can be confirmed according to project requirements.
Can this product be supplied with matching accessories?
Yes. Jiaxin can help match closures, terminal boxes, splitters, connectors, clamps and other FTTH installation materials when needed.
How is quality checked before shipment?
Products can be checked through production inspection and optical testing before packing. Final inspection items are confirmed according to the order.
