ADSS Fiber Optic Cable

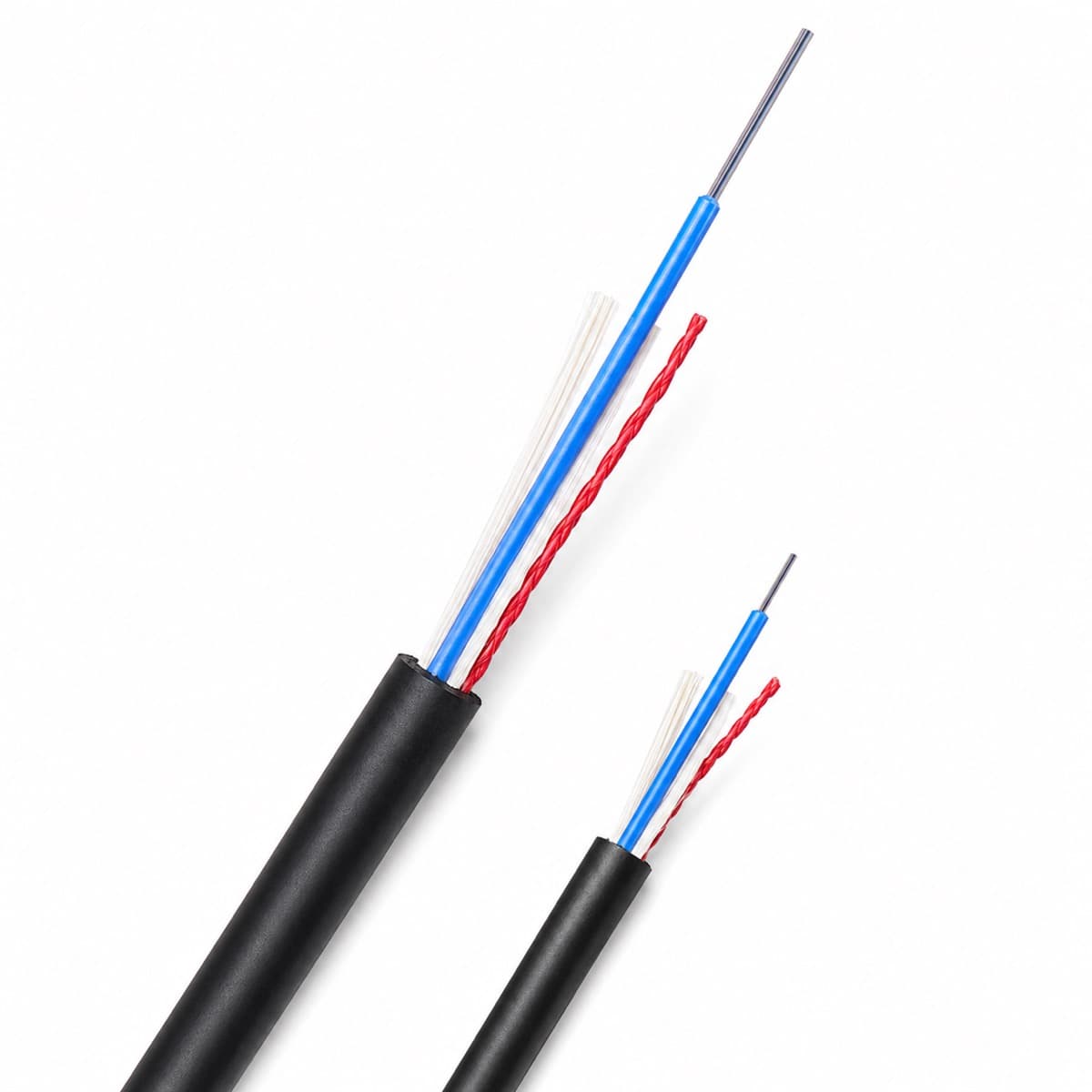

Mini ADSS Fiber Optic Cable
Lightweight all-dielectric self-supporting aerial fiber optic cable for short-span outdoor installation, FTTH access networks and community broadband projects.
Product Information
Key Features & Specifications
Common selection references are shown for orientation; final model parameters, construction and availability are confirmed in the quotation and agreed technical documents before ordering.
Main Features
- Lightweight design for easier aerial installation
- All-dielectric structure with good EMI immunity
- Aramid yarn strength member for stable tensile performance
- UV and weather resistant PE outer sheath
- Suitable for short-span FTTH and telecom access routes

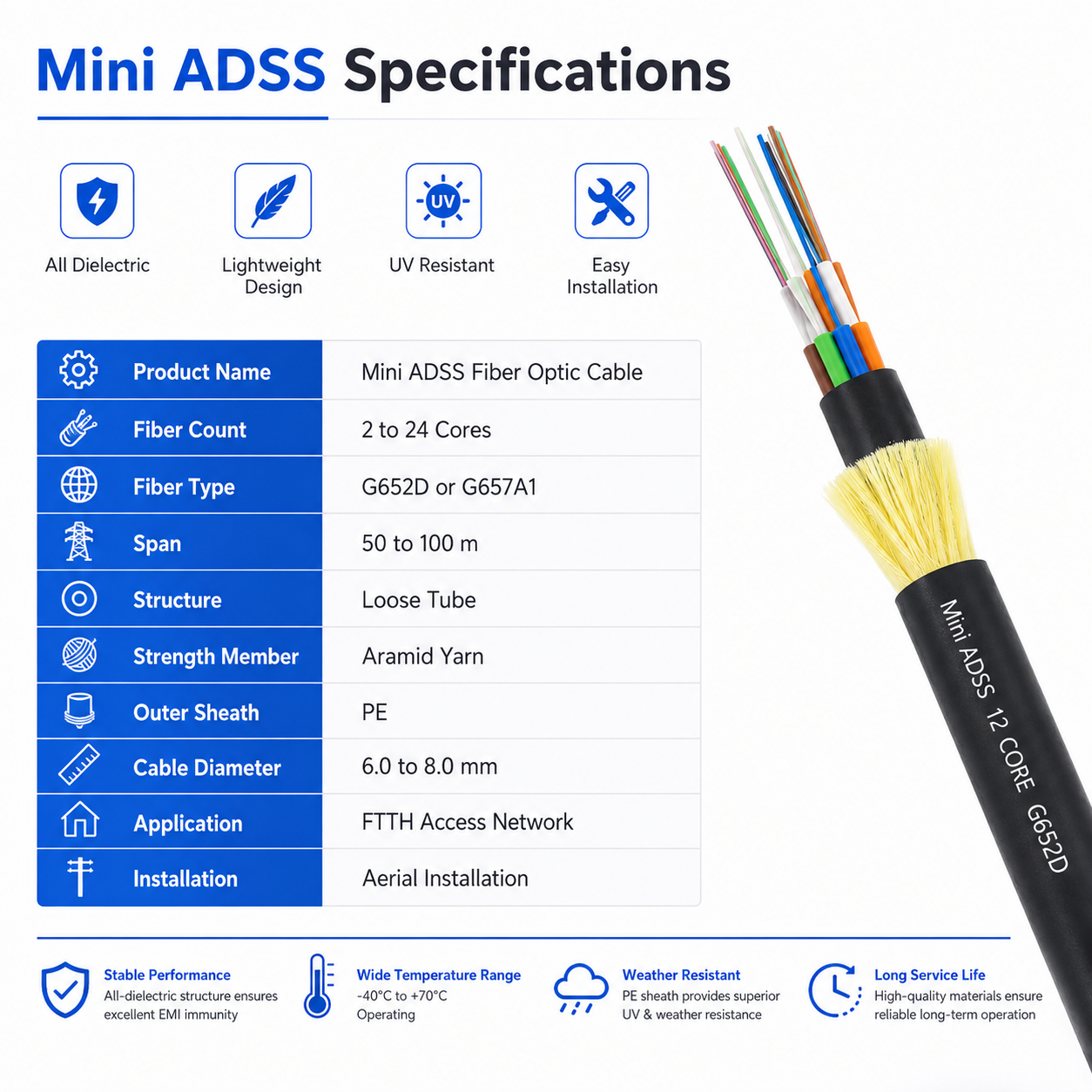

Technical Specifications
| Fiber Count | 2 to 24 cores |
|---|---|
| Span | 50 to 100 m |
| Jacket | Black PE / HDPE; anti-tracking sheath available for power line environments |
| Core Type | Single mode G.652D / G.657A1 / G.655 optional |
| Strength Member | Aramid yarn |
| Packing | Wooden drum or plywood drum, drum length confirmed by order |
| Application | Aerial telecom routes, FTTH access, ISP backbone and rural broadband |
| Operating Temperature | -40C to +70C |
| Testing | Optical attenuation, continuity and drum inspection before shipment |
| Printing | Cable jacket marking and drum label can be customized |
| Lead Time | Usually 7 to 20 days depending on fiber count, span design and quantity |
| Fiber Type | G652D or G657A1 |
| Structure | Loose tube |
| Outer Sheath | PE |
| Cable Diameter | 6.0 to 8.0 mm |
| Installation | Aerial installation |
Our factory has CE and RoHS documentation and ISO 9001 certification. Images of these documents are available on request.

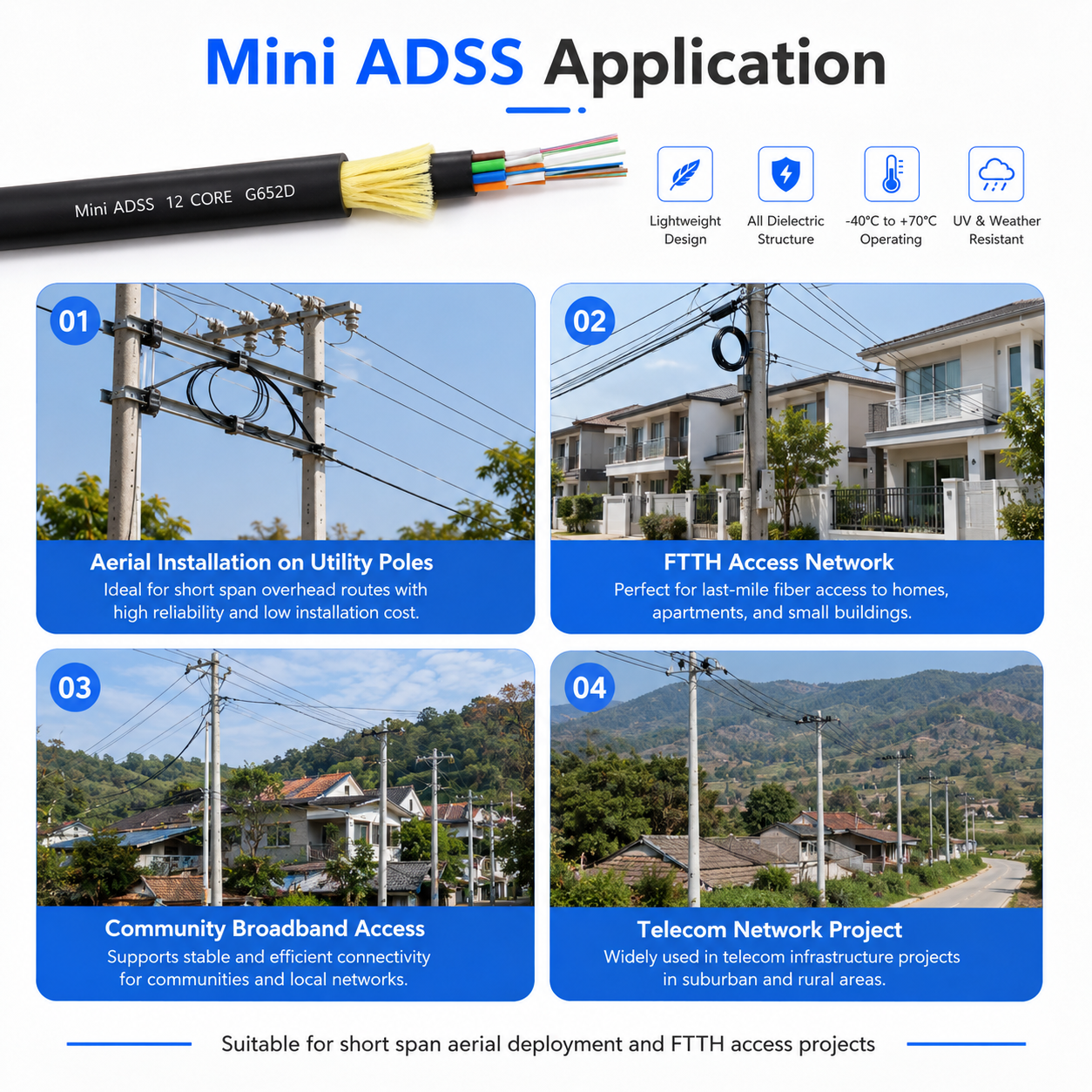

Applications
Aerial installation on utility polesFTTH access networkCommunity broadband accessRural and suburban telecom network projects
Jiaxin Production File
Confirm the Drawing, Tests and Packing Before Release
Production checkpoints
Short-span self-supporting aerial telecom routes
Optical and mechanical tests
Black PE / HDPE; anti-tracking sheath available for power line environments
Batch and export records
Wooden drum or plywood drum, drum length confirmed by order
Jiaxin manufacturing route
Mini ADSS Cable: Production and Inspection Plan
Jiaxin connects the selected construction to the workshop process, test plan and export handover so the quotation can move into production without missing data.
Manufacturing checkpoints
Control fibre colouring, tube extrusion, SZ stranding, aramid application, sheath concentricity and finished-cable diameter for the confirmed span design.Inspection plan
Confirm incoming fibre and material records, in-process dimensions and the final attenuation or OTDR sample plan. Mechanical tests are added according to the cable construction and contract.Export handover

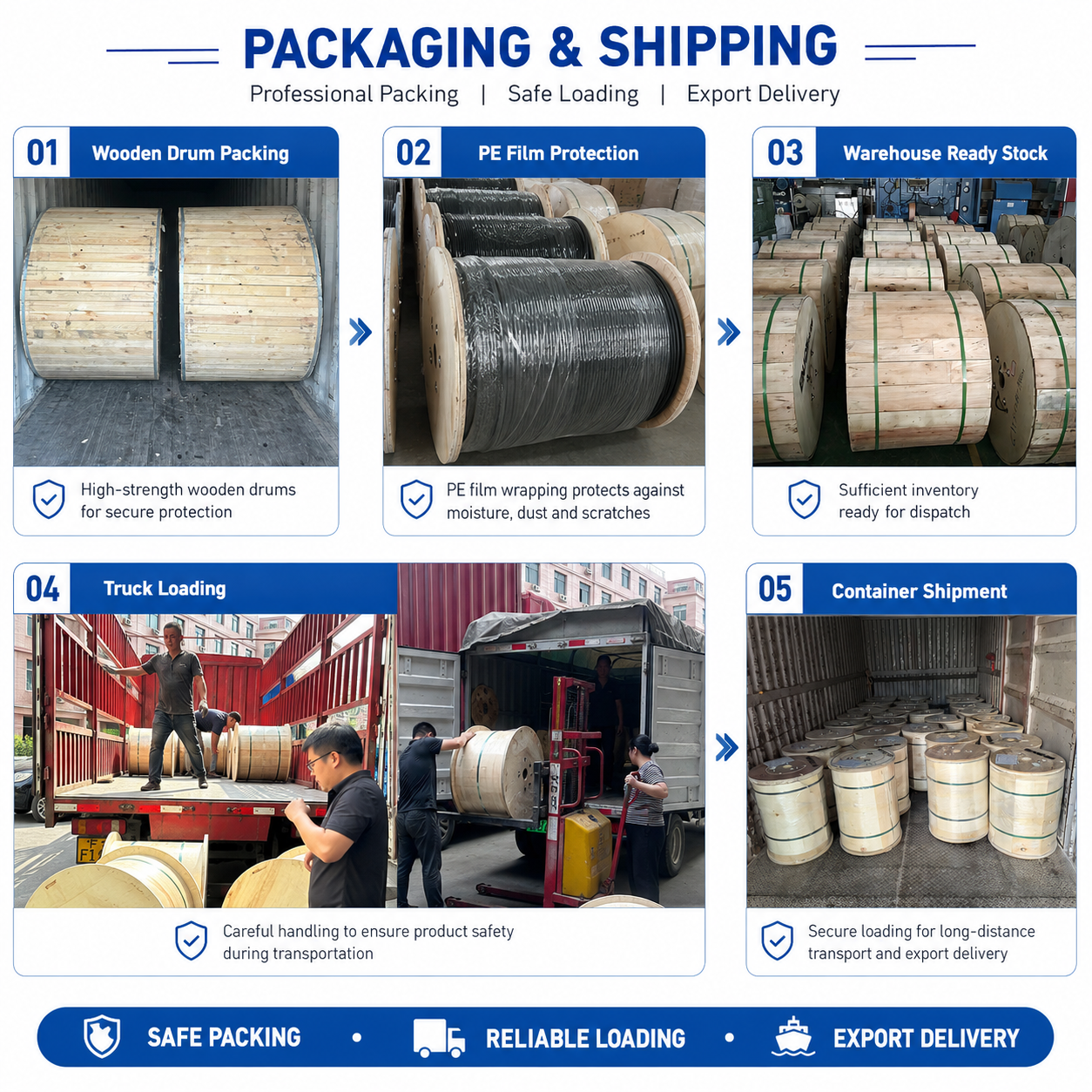

Match finished quantity to drum or carton labels, jacket printing, packing photos and loading list. The buyer receives the agreed test records and shipping document set before dispatch.Technical Buyer Guide
How to Choose ADSS Fiber Optic Cable for 100m and 200m Span Routes
A practical buyer guide for selecting ADSS cable by span, fiber count, sheath, strength member and installation environment.
Download & Inquiry
Prepare Your Product Inquiry
Download the PDF catalog or use the online catalog to compare related models, then send your required fiber count, quantity and installation route.
Product FAQ
Common Buyer Questions
What information is needed to quote Mini ADSS Cable?
Please send the model, fiber count, fiber type, quantity, installation method, packing requirement and destination port or country.
Can Jiaxin customize the cable specification?
Yes. Fiber count, sheath material, cable color, printing, packing and related accessories can be confirmed according to project requirements.
Can this product be supplied with matching accessories?
Yes. Jiaxin can help match closures, terminal boxes, splitters, connectors, clamps and other FTTH installation materials when needed.
How is quality checked before shipment?
Products can be checked through production inspection and optical testing before packing. Final inspection items are confirmed according to the order.
