Outdoor Fiber Optic Cable
GYTC8S53 Armored Figure 8 Fiber Optic Cable

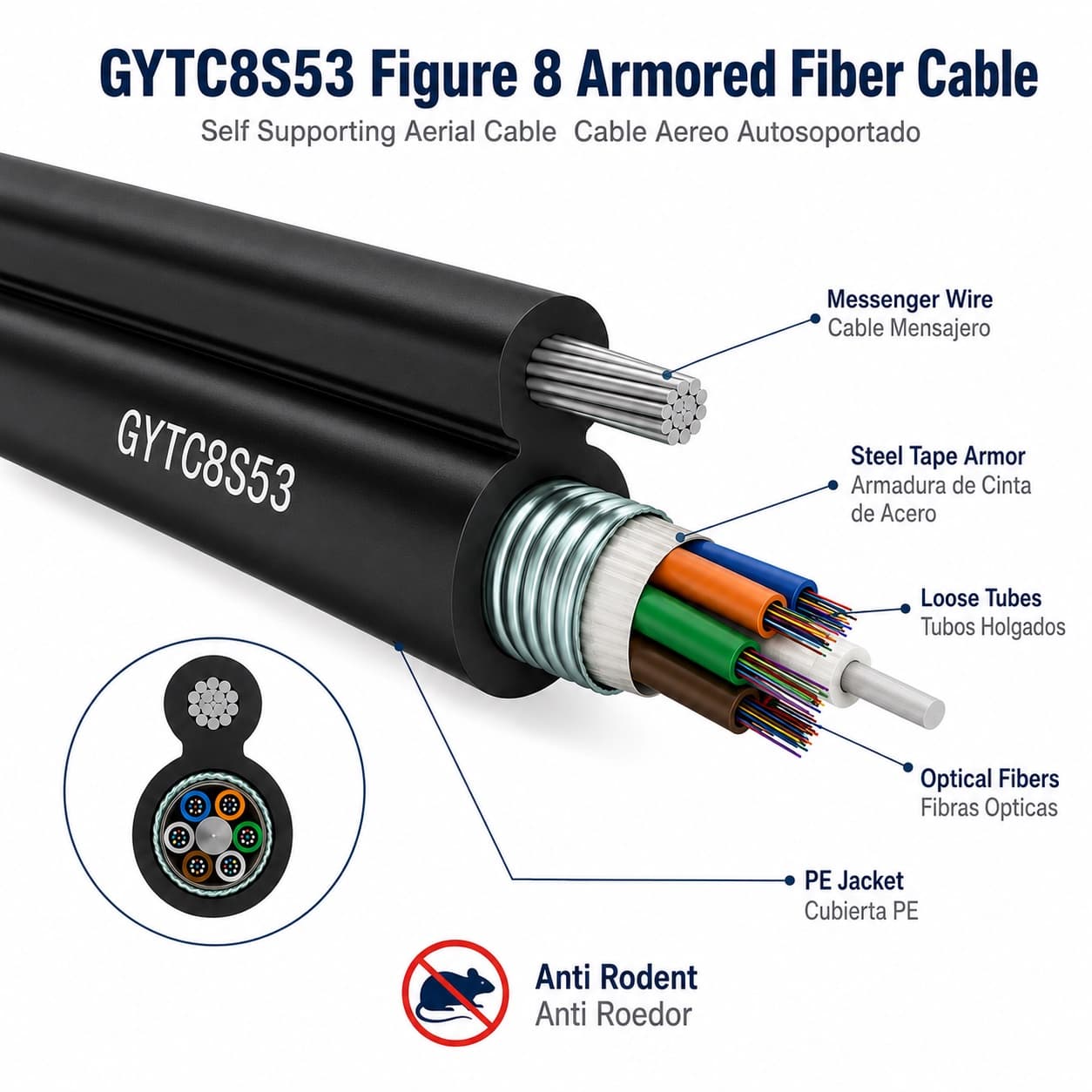

GYTC8S53 combines a figure 8 steel messenger with stranded loose tubes and corrugated steel tape armor for protected outdoor aerial telecom routes.
Product Information
Key Features & Specifications
Common selection references are shown for orientation; final model parameters, construction and availability are confirmed in the quotation and agreed technical documents before ordering.
Main Features
- Self-supporting figure 8 construction
- Stranded loose tube cable core
- Corrugated steel tape armor

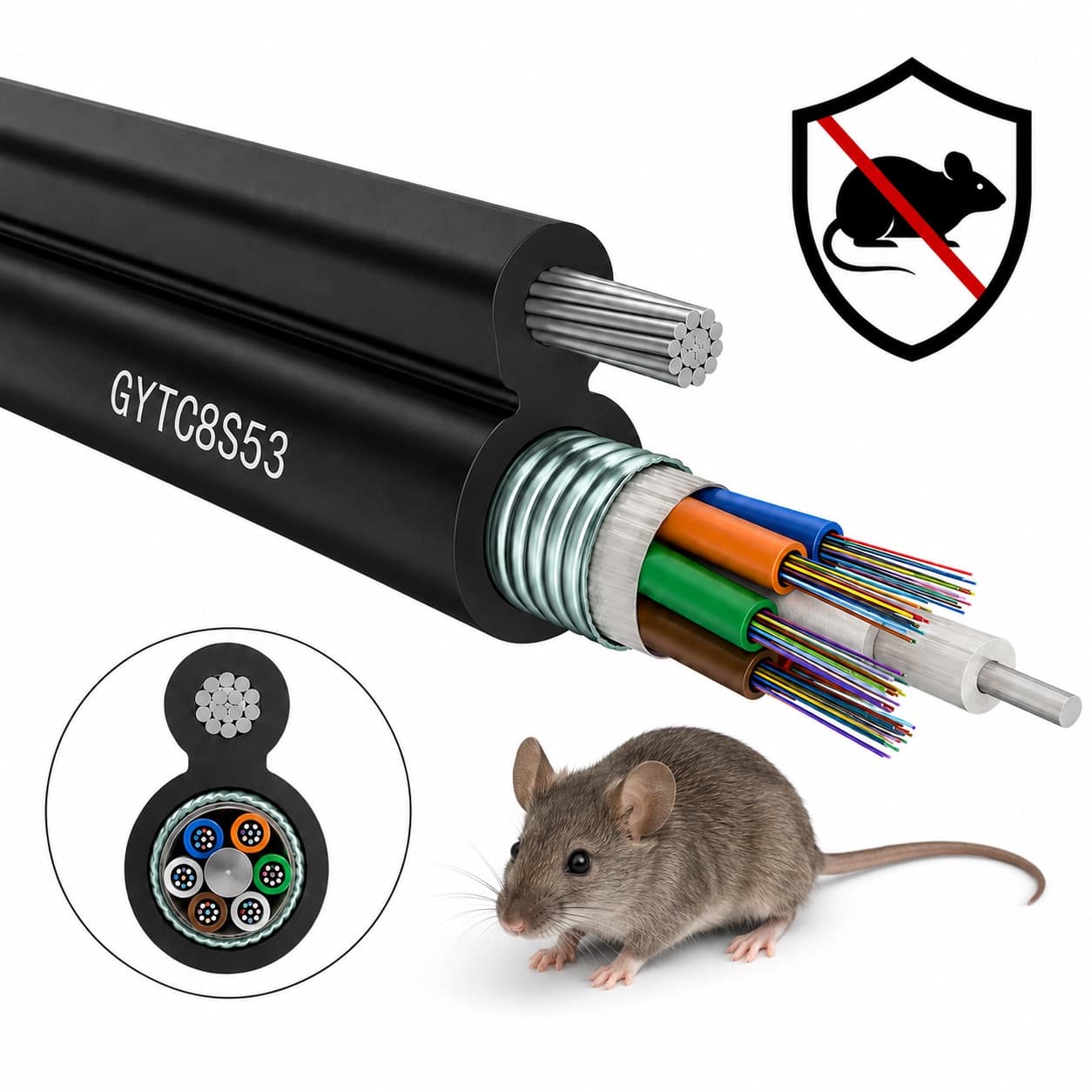

- Added mechanical and rodent protection
- PE sheath for outdoor exposure
Technical Specifications
| Fiber Count | 12 to 144 fibers, customized |
|---|---|
| Span | Aerial or duct route, span depends on cable structure and installation method |
| Jacket | Black PE / HDPE outdoor sheath, UV-resistant |
| Core Type | G.652D single mode; G.657A1 / G.655 optional |
| Structure | Stranded loose tubes with figure 8 messenger |
| Packing | Wooden drum or plywood drum, common length 2 km to 4 km per drum |
| Application | Outdoor backbone, duct, aerial and distribution network |
| Operating Temperature | -40°C to +70°C |
| Testing | Optical, tensile and sheath inspection |
| Printing | Cable jacket marking, meter marking and drum label can be customized |
| Lead Time | Usually 10 to 25 days depending on fiber count and order quantity |
| Fiber Type | G.652D or G.657A1 |
| Armor | Corrugated steel tape |
| Outer Sheath | Black PE |
| Installation | Self-supporting aerial route |
Our factory has CE and RoHS documentation and ISO 9001 certification. Images of these documents are available on request.
Applications
Armored aerial backbone routesTelecom distribution networksRodent-prone outdoor routesRural broadband construction
Jiaxin Production File
Confirm the Drawing, Tests and Packing Before Release
Production checkpoints
Self-supporting aerial routes requiring added mechanical and rodent protection
Optical and mechanical tests
Black PE / HDPE outdoor sheath, UV-resistant
Batch and export records
Wooden drum or plywood drum, common length 2 km to 4 km per drum
Technical Buyer Guide
GYTA vs GYTS vs GYXTW: Which Outdoor Cable Structure Fits Your Route?
A route-based comparison of GYTA aluminium-tape, GYTS steel-tape and compact GYXTW central-tube outdoor cable structures for duct, aerial and distribution projects.
Download & Inquiry
Prepare Your Product Inquiry
Download the PDF catalog or use the online catalog to compare related models, then send your required fiber count, quantity and installation route.
Product FAQ
Common Buyer Questions
What information is needed to quote GYTC8S53 Figure 8 Cable?
Please send the model, fiber count, fiber type, quantity, installation method, packing requirement and destination port or country.
Can Jiaxin customize the cable specification?
Yes. Fiber count, sheath material, cable color, printing, packing and related accessories can be confirmed according to project requirements.

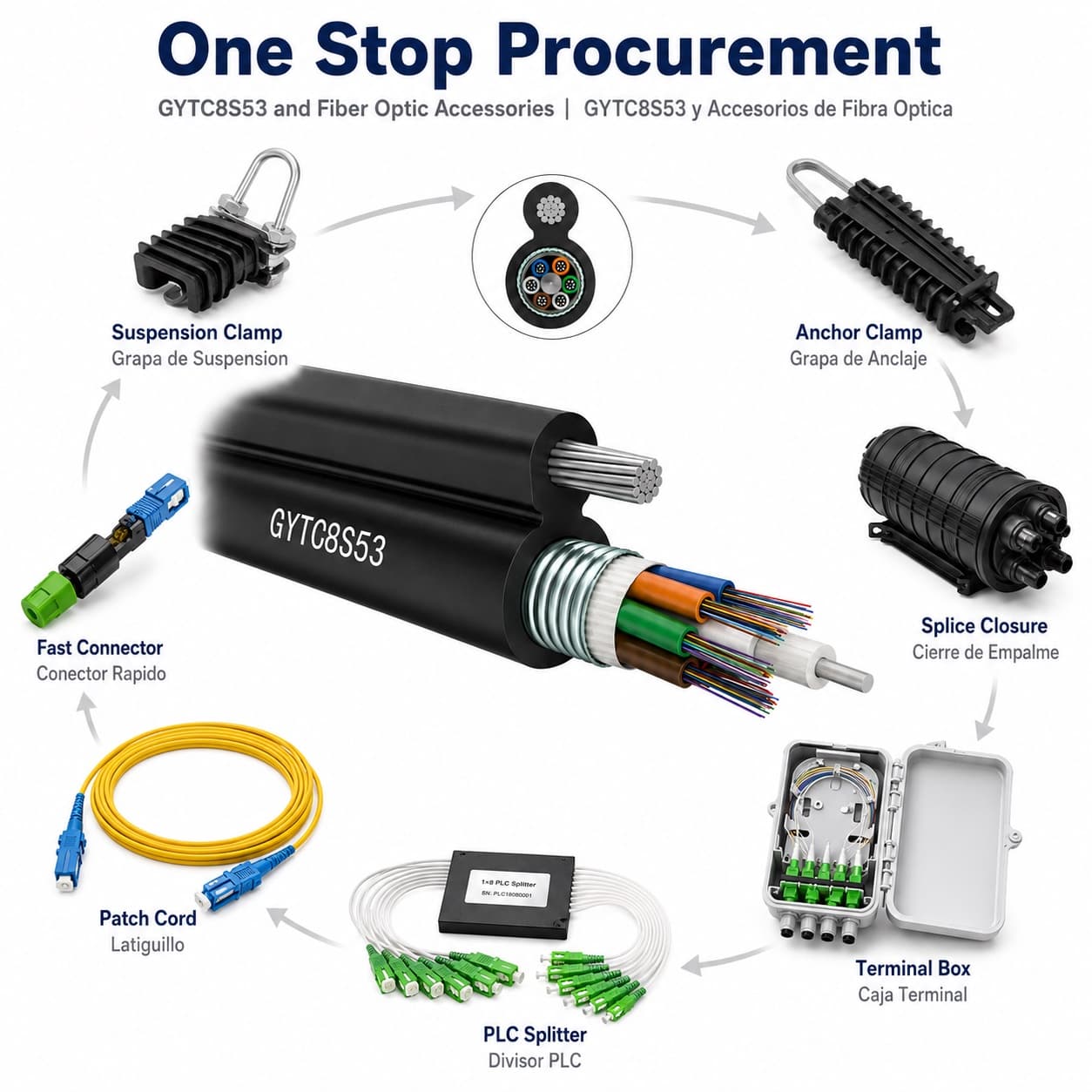

Can this product be supplied with matching accessories?
Yes. Jiaxin can help match closures, terminal boxes, splitters, connectors, clamps and other FTTH installation materials when needed.
How is quality checked before shipment?
Products can be checked through production inspection and optical testing before packing. Final inspection items are confirmed according to the order.
