FTTH Indoor Drop Cable
Pre Connectorized Indoor FTTH Drop Cable
Factory-terminated indoor FTTH drop assemblies for the final connection inside buildings. Specify each connector, finished length and the building cable requirement before ordering. For distributor and OEM orders, make each connector pair and length a separate SKU. Send the mixed-length quantity table, label artwork and bag/carton plan so receiving staff can identify the correct assembly without opening every coil.

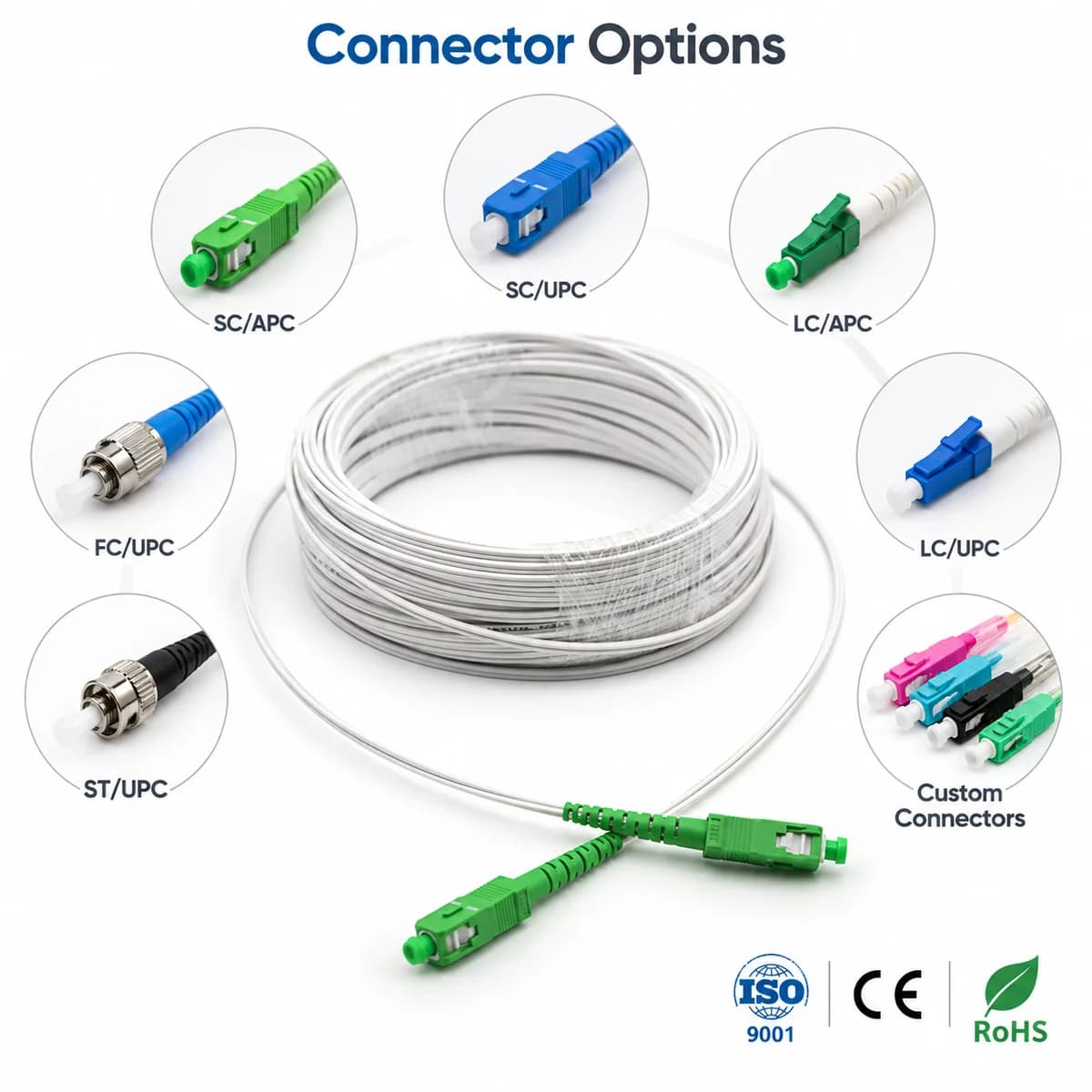

Images show connector and length options, not one fixed assembly or proof of certification. Confirm the ordered configuration and applicable documents.
Product Information
Key Features & Specifications
Common selection references are shown for orientation; final model parameters, construction and availability are confirmed in the quotation and agreed technical documents before ordering.
Main Features
- Connector and length customization
- End A / end B configuration confirmed before production
- Length-by-quantity packing and identification
- Cable, connector and installation accessories quoted as an agreed kit
Technical Specifications
| Connectors | SC / LC / FC / ST / MPO / E2000 and other interfaces can be customized; confirm the exact connector and polish at each end. |
|---|---|
| Termination | One or both ends, identical or different interfaces by order; MPO fibre count, pin gender and polarity require separate confirmation. |
| Finished length | Custom lengths; quote quantity for each length and agree connector-to-connector measurement and tolerance. |
| Fibre selection | Confirm fibre type and count; G.657A1 / G.657A2 and 1 / 2 / 4 fibres are selection options, subject to the assembly drawing. |
| Cable construction | Indoor jacket, colour and strength members by specification; confirm LSZH/PVC and the required fire/smoke test classification. |
| Optical acceptance | Confirm insertion loss, return loss, wavelength, test method and report requirement in the order. IEC 61300-3-4 is an attenuation measurement reference, not a universal acceptance limit. |
| Mechanical limits | Tensile load, bend radius, dimensions and temperature depend on the selected cable; use the approved specification, not the connector type. |
| Packing | Individual coil/bag, length label, end identification, carton quantity and OEM marking by agreement. |
Our factory has CE and RoHS documentation and ISO 9001 certification. Images of these documents are available on request.
Applications
Fibre outlet to subscriber equipmentProtected building and apartment routes
Jiaxin Production File
Confirm the Drawing, Tests and Packing Before Release
Production checkpoints
Fibre outlet to subscriber equipment
Optical and mechanical tests
Confirm attenuation or OTDR records plus tensile, crush, bend or environmental tests when required.
Batch and export records
Individual coil/bag, length label, end identification, carton quantity and OEM marking by agreement.
RFQ: send one line for each assembly
For distributor and OEM orders, make each connector pair and length a separate SKU. Send the mixed-length quantity table, label artwork and bag/carton plan so receiving staff can identify the correct assembly without opening every coil.
- End A and end B: connector type, APC/UPC where applicable, one or two terminated ends.
- Fibre type/count and cable model or required construction.
- Finished length, measurement reference, tolerance and quantity per length.
- Route, entry opening and installation method; check that the protected connector can pass.
- Required insertion/return loss, wavelength, inspection and test records.
- Labels, individual packing, accessories, destination and required delivery date.
Check wall/conduit openings before ordering. A bend-insensitive fibre does not remove the cable bend-radius limit, and LSZH alone is not a fire-performance classification.
Technical Buyer Guide
Indoor vs Outdoor FTTH Drop Cable: What Buyers Should Confirm Before Ordering
Understand the difference between GJXH, GJXFH, GJYXCH and GJYXFCH drop cable for subscriber access projects.
Download & Inquiry
Prepare Your Product Inquiry
Download the PDF catalog or use the online catalog to compare related models, then send your required fiber count, quantity and installation route.
Product FAQ
Common Buyer Questions
How should an OEM buyer separate assembly SKUs?
For distributor and OEM orders, make each connector pair and length a separate SKU. Send the mixed-length quantity table, label artwork and bag/carton plan so receiving staff can identify the correct assembly without opening every coil.
Can one order contain different finished lengths?
No. Custom lengths are available. The quotation should list each finished length, its quantity, tolerance and measurement reference.
What packing details should a distributor approve?
Individual coil/bag, length label, end identification, carton quantity and OEM marking by agreement.
