Outdoor Fiber Optic Cable

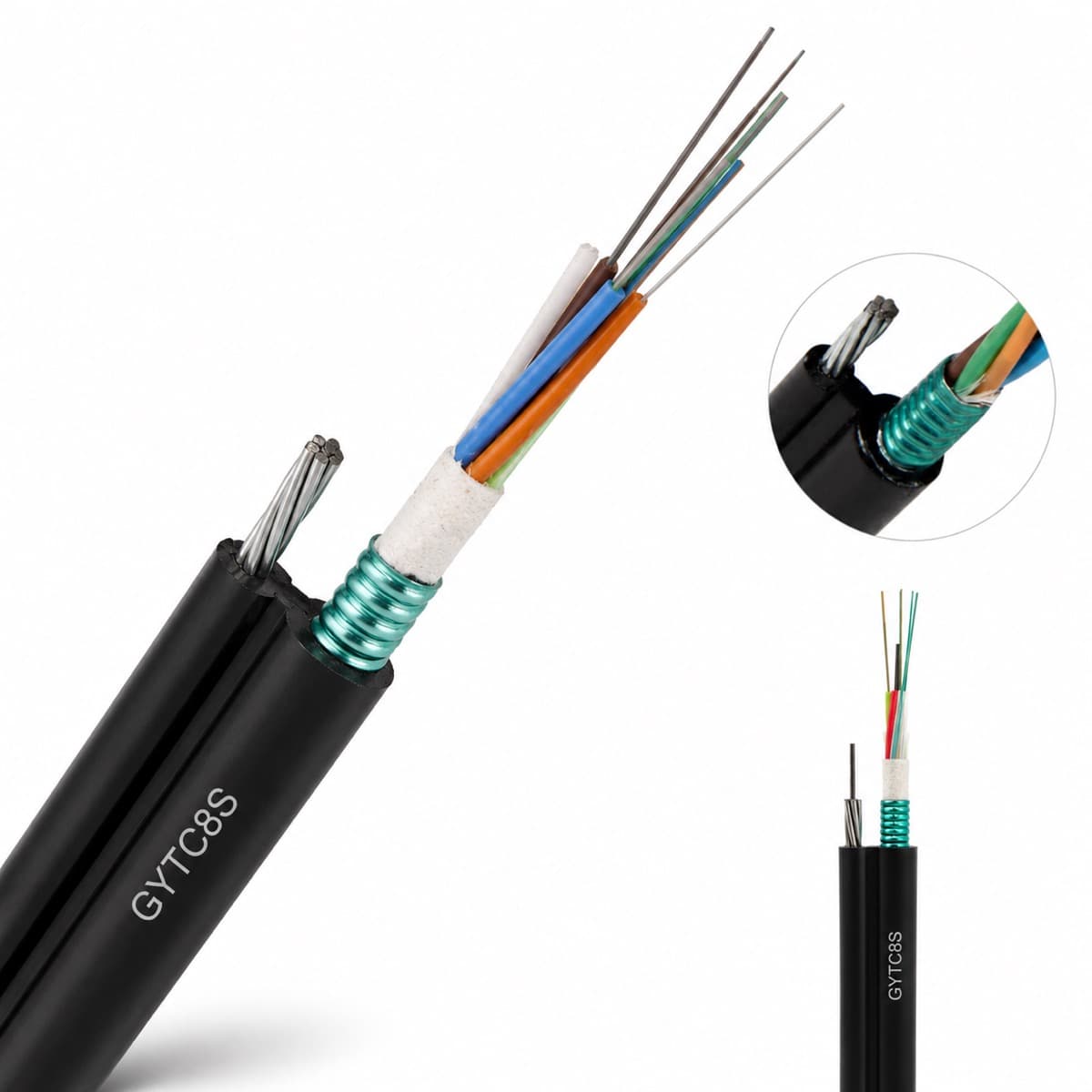

GYTC8S Figure 8 Fiber Optic Cable
GYTC8S figure 8 fiber optic cable is used for self-supporting aerial outdoor communication routes.
Product Information
Key Features & Specifications
Common selection references are shown for orientation; final model parameters, construction and availability are confirmed in the quotation and agreed technical documents before ordering.

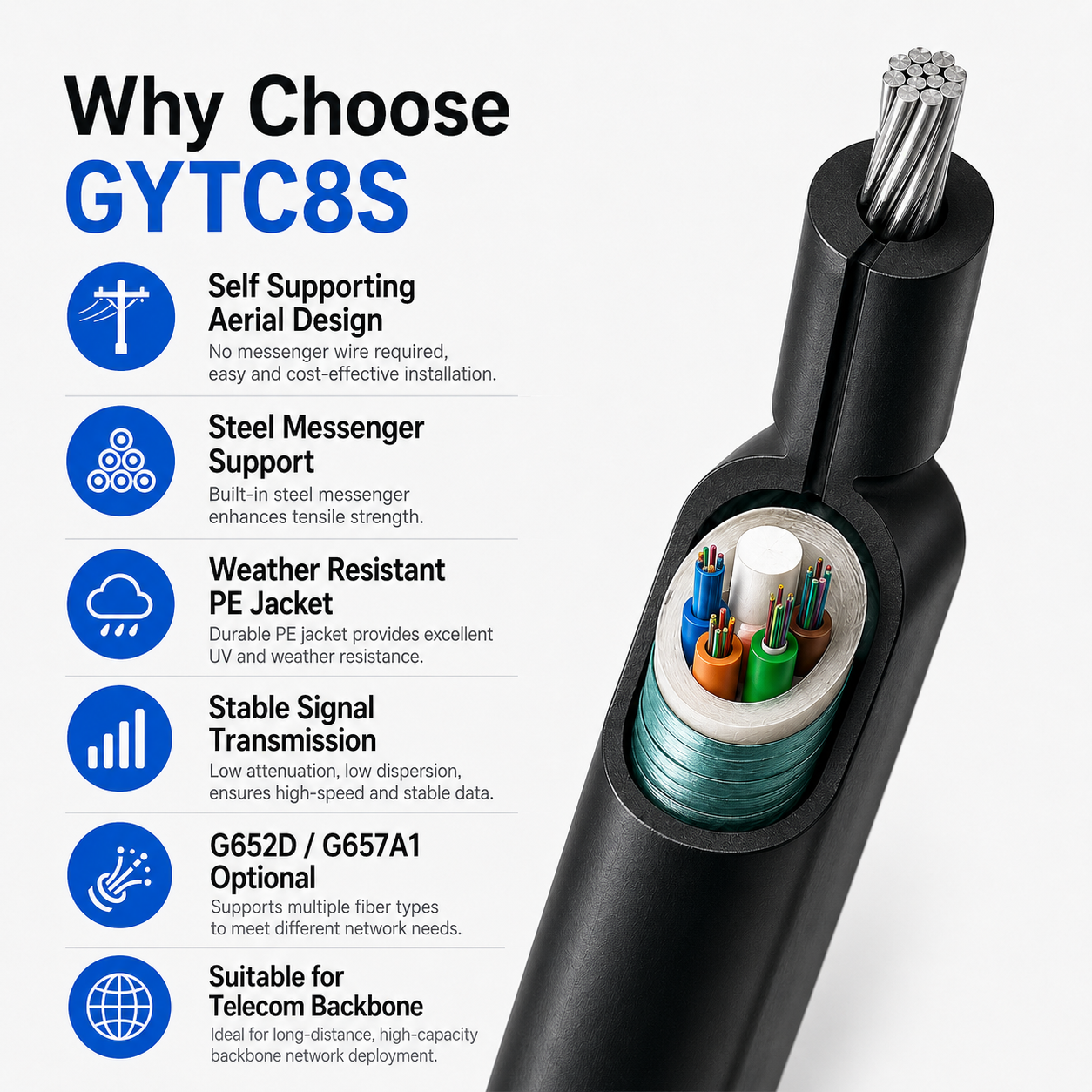

Main Features
- Factory supply for telecom and FTTH projects
- Custom specifications available according to order requirements
- Matched with related installation materials when needed
- Export packing and product marking support

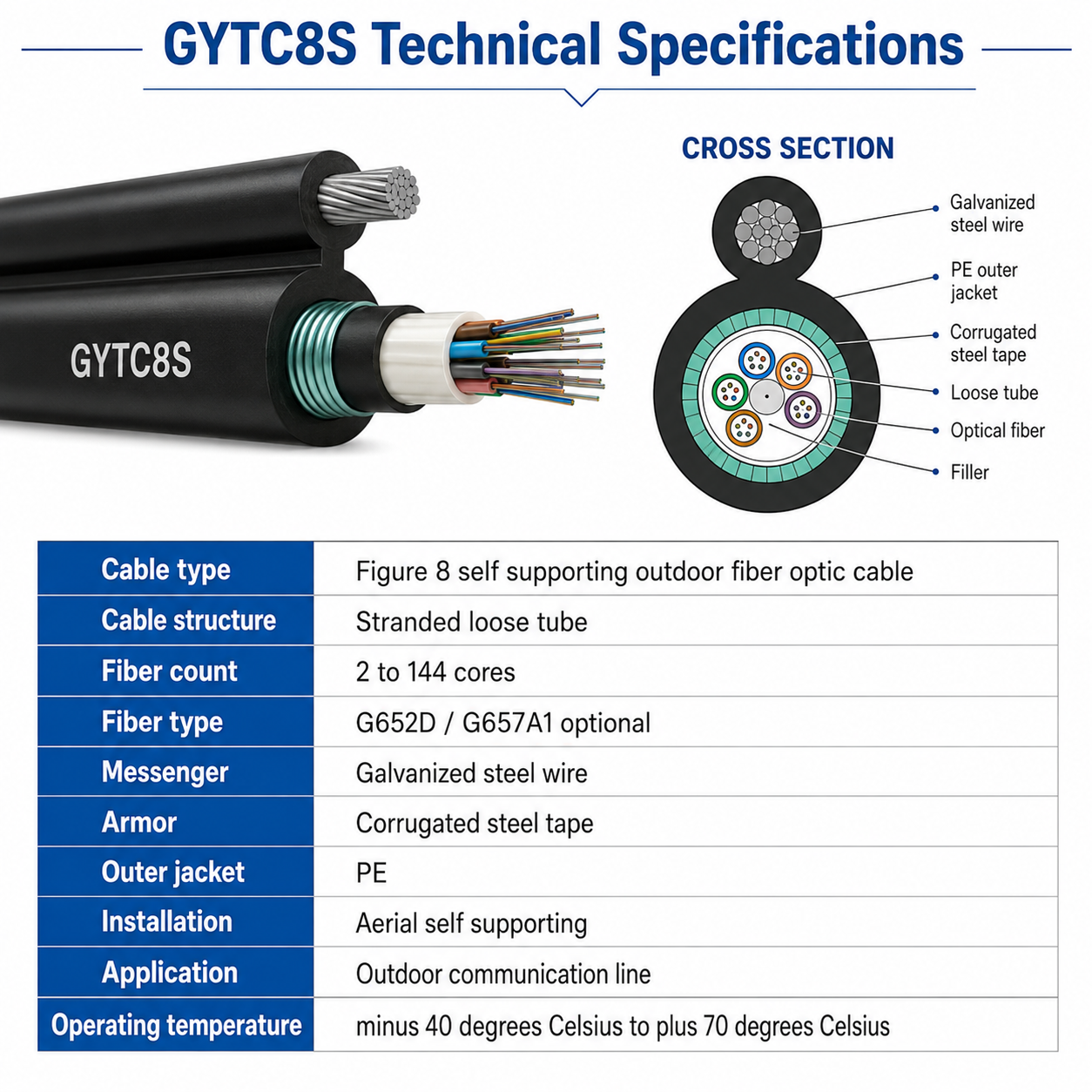

Technical Specifications
| Fiber Count | 2 to 288 cores, higher fiber count can be confirmed by project |
|---|---|
| Span | Aerial or duct route, span depends on cable structure and installation method |
| Jacket | Black PE / HDPE outdoor sheath, UV-resistant |
| Core Type | G.652D single mode; G.657A1 / G.655 optional |

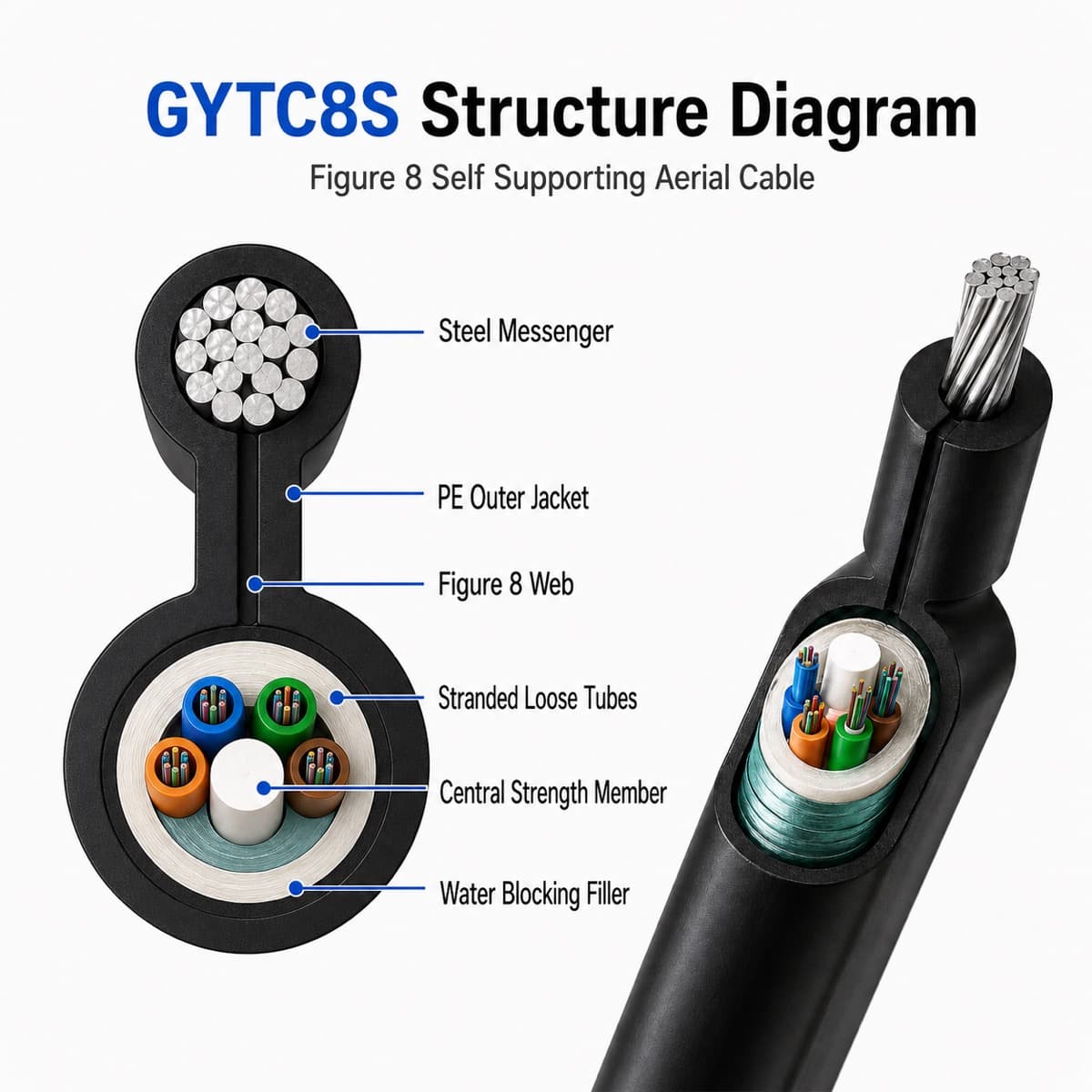

| Structure | Central tube or stranded loose tube according to model |
| Packing | Wooden drum or plywood drum, common length 2 km to 4 km per drum |
| Application | Outdoor backbone, duct, aerial and distribution network |
| Operating Temperature | -40°C to +70°C |
| Testing | OTDR / attenuation, continuity and drum inspection before shipment |
| Printing | Cable jacket marking, meter marking and drum label can be customized |
| Lead Time | Usually 10 to 25 days depending on fiber count and order quantity |
Our factory has CE and RoHS documentation and ISO 9001 certification. Images of these documents are available on request.
Applications
Telecom network projectsFTTH access networksISP and contractor supplyDistribution and installation projects
Jiaxin Production File
Confirm the Drawing, Tests and Packing Before Release
Production checkpoints
Self-supporting figure 8 aerial fiber routes
Optical and mechanical tests
Black PE / HDPE outdoor sheath, UV-resistant
Batch and export records
Wooden drum or plywood drum, common length 2 km to 4 km per drum
Technical Buyer Guide
GYTA vs GYTS vs GYXTW: Which Outdoor Cable Structure Fits Your Route?
A route-based comparison of GYTA aluminium-tape, GYTS steel-tape and compact GYXTW central-tube outdoor cable structures for duct, aerial and distribution projects.
Download & Inquiry
Prepare Your Product Inquiry
Download the PDF catalog or use the online catalog to compare related models, then send your required fiber count, quantity and installation route.
Product FAQ
Common Buyer Questions
What information is needed to quote GYTC8S Figure 8 Cable?
Please send the model, fiber count, fiber type, quantity, installation method, packing requirement and destination port or country.
Can Jiaxin customize the cable specification?
Yes. Fiber count, sheath material, cable color, printing, packing and related accessories can be confirmed according to project requirements.
Can this product be supplied with matching accessories?
Yes. Jiaxin can help match closures, terminal boxes, splitters, connectors, clamps and other FTTH installation materials when needed.
How is quality checked before shipment?
Products can be checked through production inspection and optical testing before packing. Final inspection items are confirmed according to the order.
