FTTH Solution

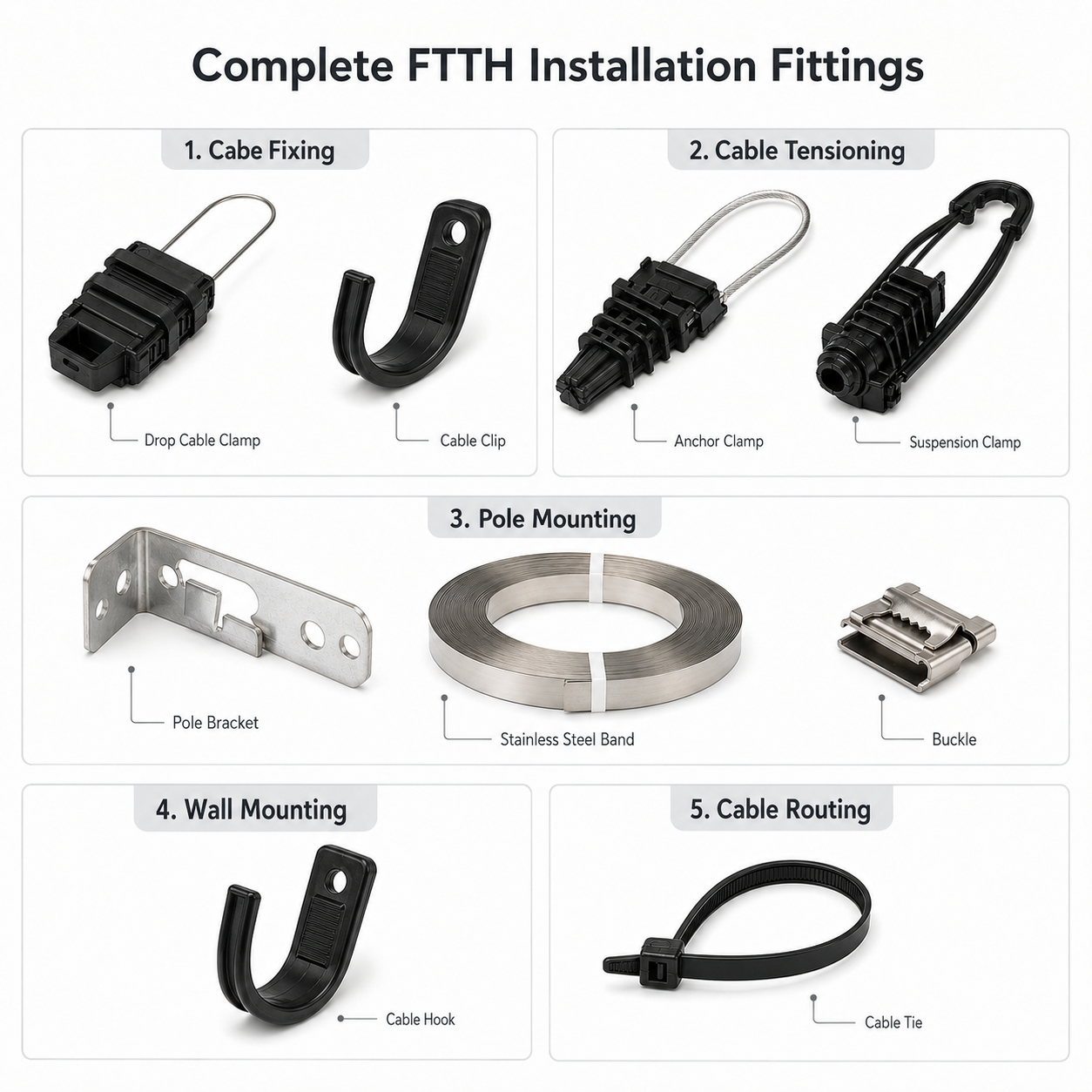

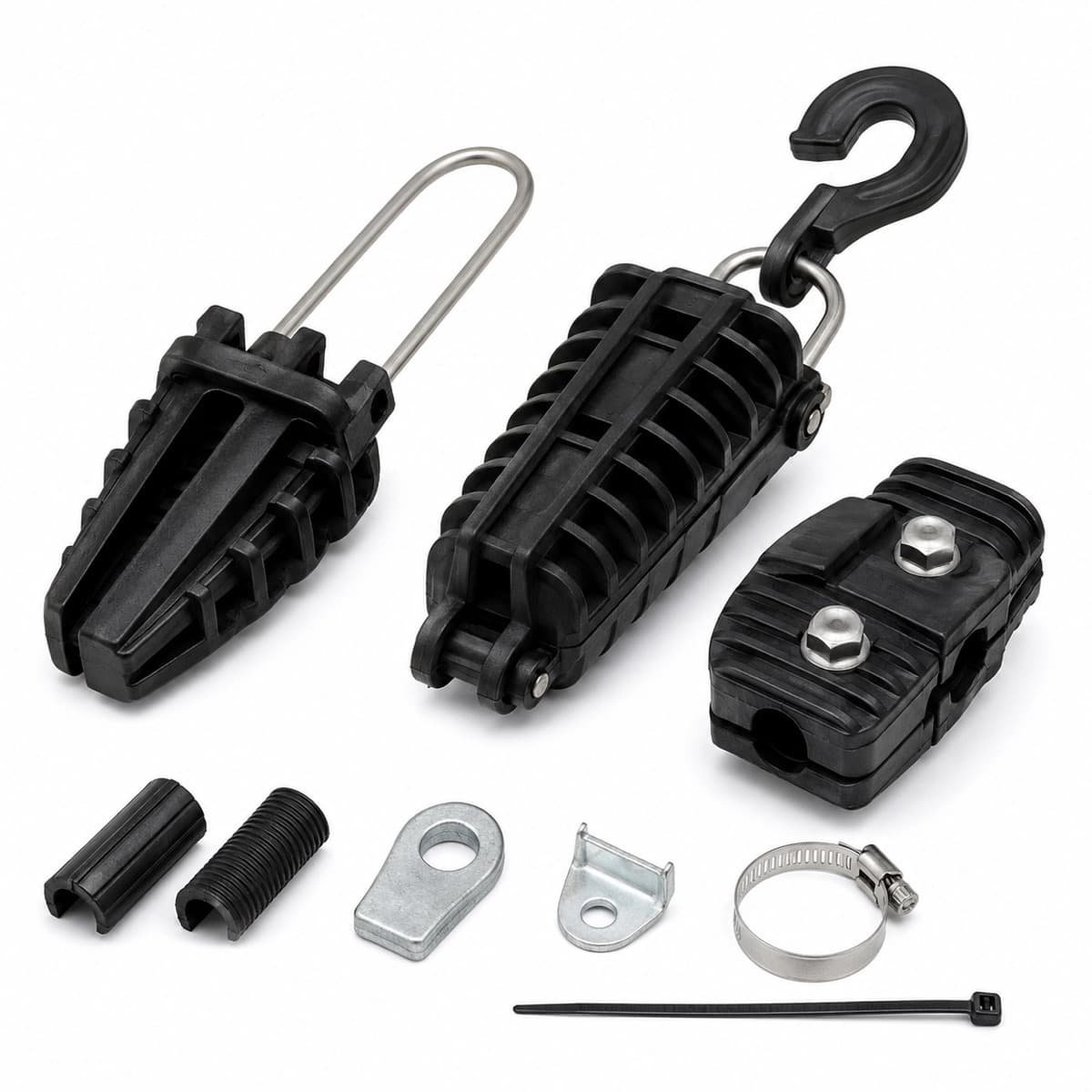

FTTH Installation Fittings
FTTH installation fittings help organize drop cable fixing, routing and access network deployment.
Product Information
Key Features & Specifications
Common selection references are shown for orientation; final model parameters, construction and availability are confirmed in the quotation and agreed technical documents before ordering.
Main Features
- Factory supply for telecom and FTTH projects
- Custom specifications available according to order requirements
- Matched with related installation materials when needed
- Export packing and product marking support
Technical Specifications
| Product Type | PLC splitter, distribution box, fast connector or FTTH installation fitting |
|---|---|
| Fiber / Connector | SC / LC, UPC / APC options; splitter ratio 1x2 to 1x64 when applicable |
| Material | ABS / PC / cold rolled steel / stainless fitting according to item |
| Cable Compatibility | Indoor and outdoor FTTH drop cable, feeder cable and distribution cable |
| Packing | Individual packing, carton and pallet available |
| Application | FTTH splitting, distribution, termination and subscriber access network |
| Operating Temperature | -40°C to +70°C depending on item |
| Testing | Insertion loss, return loss, visual and fitting inspection according to item |
| Customization | Splitter ratio, connector type, box capacity, color and label can be customized |
| Lead Time | Usually 3 to 15 days depending on item and quantity |
Our factory has CE and RoHS documentation and ISO 9001 certification. Images of these documents are available on request.
Applications
Telecom network projectsFTTH access networksISP and contractor supplyDistribution and installation projects
Jiaxin Production File
Confirm the Drawing, Tests and Packing Before Release
Production checkpoints
Installation materials for FTTH deployment
Optical and mechanical tests
Confirm attenuation or OTDR records plus tensile, crush, bend or environmental tests when required.
Batch and export records
Individual packing, carton and pallet available
Technical Buyer Guide
FTTH Project Material Checklist from OLT to User Premises
A simple material planning guide for FTTH deployment, including drop cable, closures, splitters, boxes, connectors and installation fittings.
Download & Inquiry
Prepare Your Product Inquiry
Download the PDF catalog or use the online catalog to compare related models, then send your required fiber count, quantity and installation route.
Product FAQ
Common Buyer Questions
What information is needed to quote FTTH Installation Fittings?
Please send the model, fiber count, fiber type, quantity, installation method, packing requirement and destination port or country.
Can Jiaxin customize the cable specification?
Yes. Fiber count, sheath material, cable color, printing, packing and related accessories can be confirmed according to project requirements.
Can this product be supplied with matching accessories?
Yes. Jiaxin can help match closures, terminal boxes, splitters, connectors, clamps and other FTTH installation materials when needed.
How is quality checked before shipment?
Products can be checked through production inspection and optical testing before packing. Final inspection items are confirmed according to the order.
