FTTH Outdoor Drop Cable

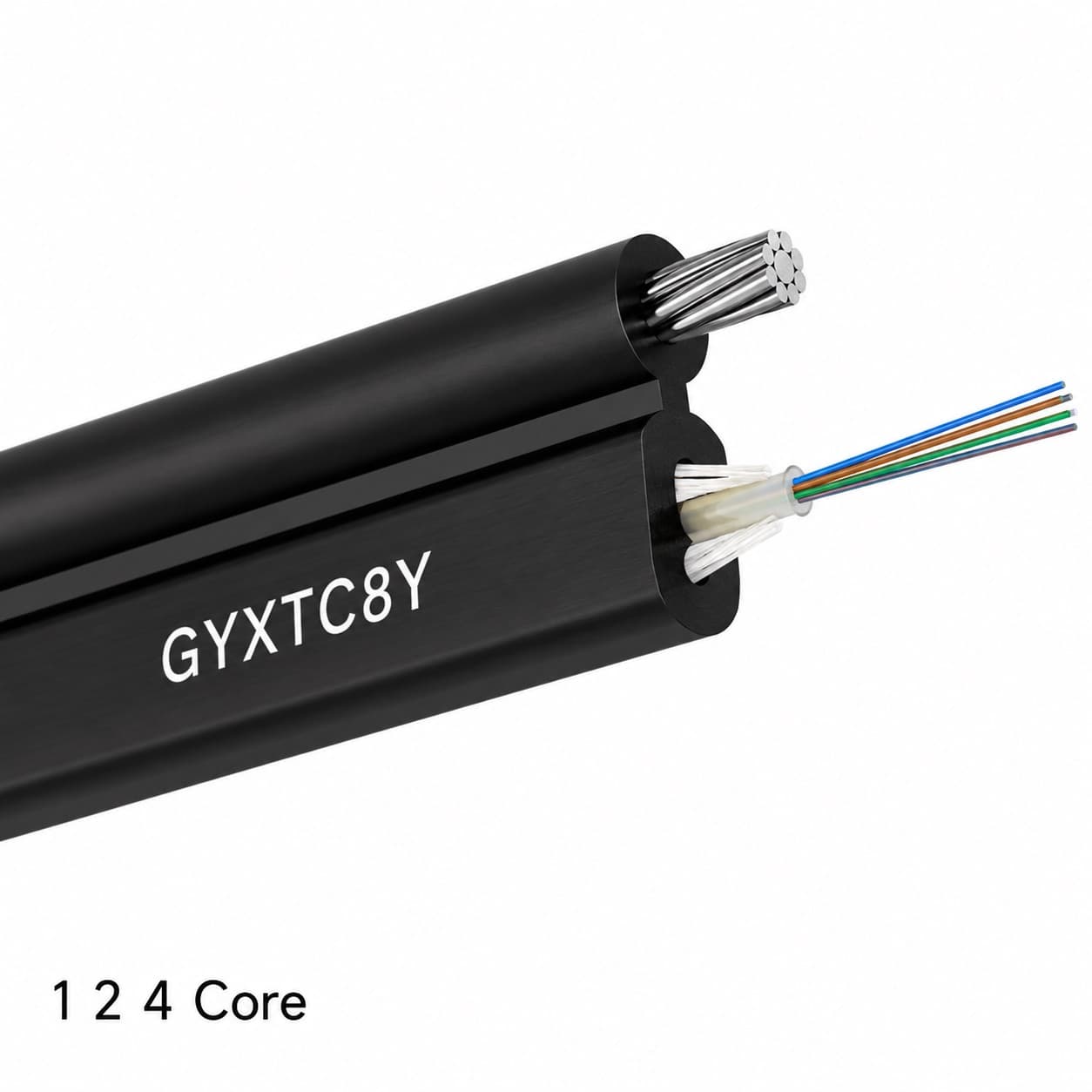

GYXTC8Y Figure 8 Outdoor Drop Cable
GYXTC8Y is a compact figure 8 self-supporting outdoor cable with a central loose tube and integrated steel messenger for short-span aerial access routes.
Product Information
Key Features & Specifications
Common selection references are shown for orientation; final model parameters, construction and availability are confirmed in the quotation and agreed technical documents before ordering.
Main Features
- Figure 8 self-supporting aerial structure
- Integrated steel messenger wire
- Central loose tube protects the fibers
- Water-blocking filling compound
- UV-resistant PE outer sheath
Technical Specifications
| Fiber Count | 1, 2 or 4 fibers |
|---|---|
| Span | Self-supporting outdoor drop route, commonly 30 m to 80 m |
| Jacket | Black LSZH / PE, UV-resistant outdoor sheath available |
| Core Type | G.657A1 / G.657A2 bend-insensitive fiber commonly used |
| Strength Member | Steel wire or FRP strength member with messenger wire according to model |
| Packing | 1 km / 2 km drum or reel, export carton and pallet available |
| Application | Outdoor FTTH last-mile connection from pole or distribution point to user premises |
| Operating Temperature | -40°C to +70°C |
| Testing | Attenuation, continuity and dimensional inspection |
| Printing | Cable jacket marking, reel label and carton label can be customized |
| Lead Time | Usually 5 to 15 days depending on quantity and packing requirement |
| Fiber Type | G.652D or G.657A1 |

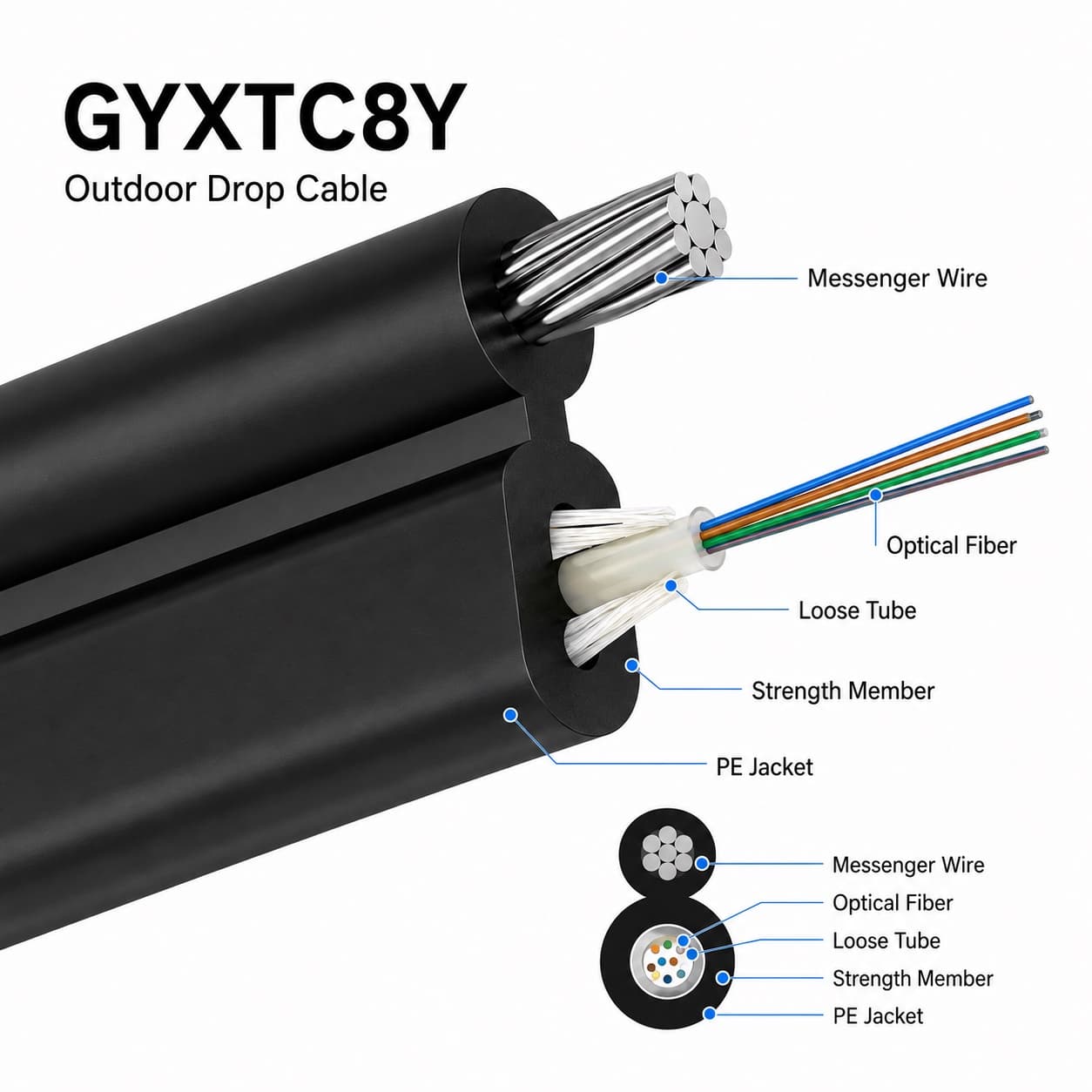

| Structure | Central loose tube figure 8 cable |
| Messenger | Integrated steel wire |
| Outer Sheath | Black PE |
| Installation | Short-span aerial access route |
Our factory has CE and RoHS documentation and ISO 9001 certification. Images of these documents are available on request.
Applications
Pole-to-building accessOutdoor FTTH distributionShort-span aerial routesRural and community broadband access
Jiaxin Production File
Confirm the Drawing, Tests and Packing Before Release
Production checkpoints
Short-span aerial access and outdoor subscriber routes
Optical and mechanical tests
Black LSZH / PE, UV-resistant outdoor sheath available
Batch and export records
1 km / 2 km drum or reel, export carton and pallet available
Technical Buyer Guide
Indoor vs Outdoor FTTH Drop Cable: What Buyers Should Confirm Before Ordering
Understand the difference between GJXH, GJXFH, GJYXCH and GJYXFCH drop cable for subscriber access projects.
Download & Inquiry
Prepare Your Product Inquiry
Download the PDF catalog or use the online catalog to compare related models, then send your required fiber count, quantity and installation route.
Product FAQ
Common Buyer Questions
What information is needed to quote GYXTC8Y Figure 8 Cable?
Please send the model, fiber count, fiber type, quantity, installation method, packing requirement and destination port or country.
Can Jiaxin customize the cable specification?
Yes. Fiber count, sheath material, cable color, printing, packing and related accessories can be confirmed according to project requirements.
Can this product be supplied with matching accessories?

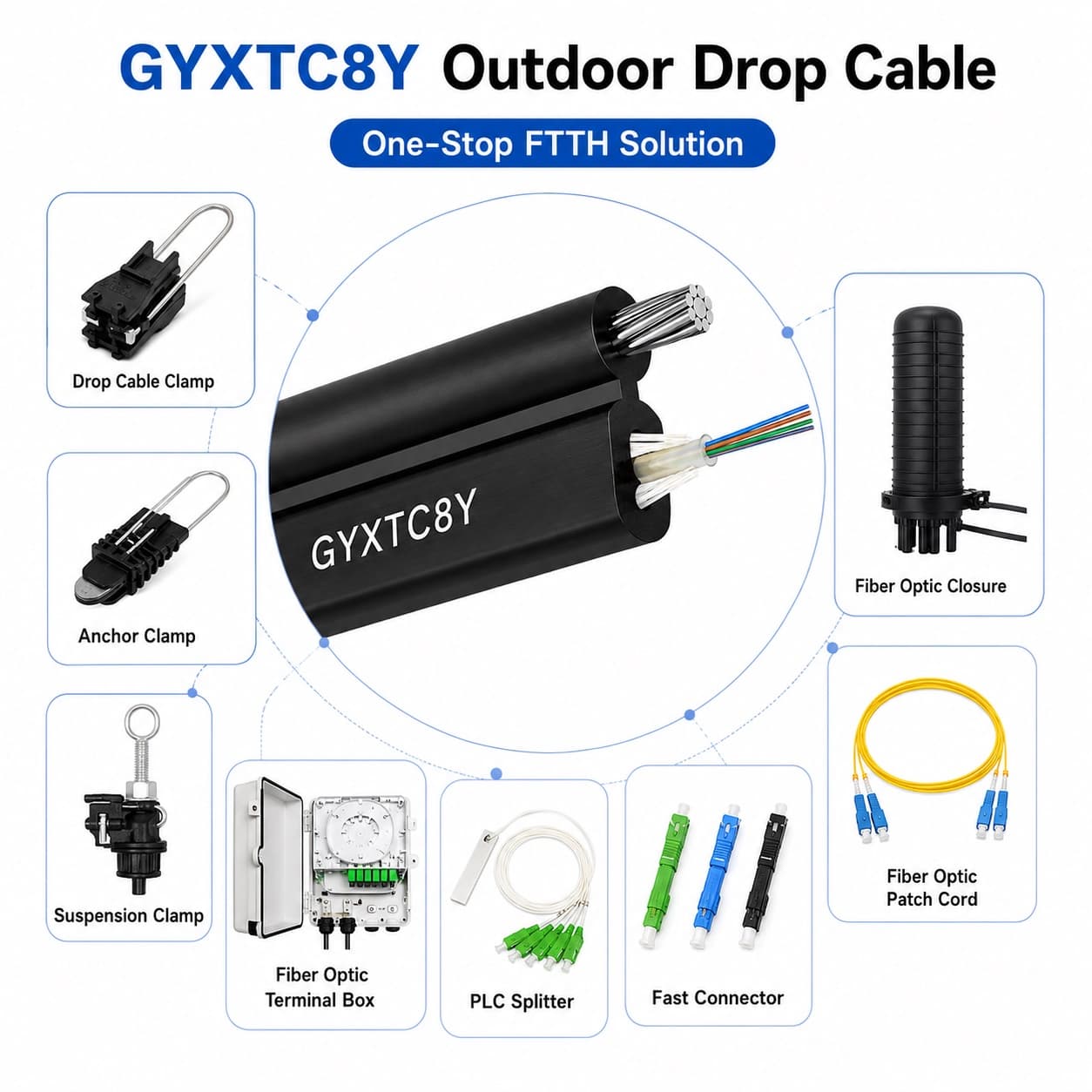

Yes. Jiaxin can help match closures, terminal boxes, splitters, connectors, clamps and other FTTH installation materials when needed.
How is quality checked before shipment?
Products can be checked through production inspection and optical testing before packing. Final inspection items are confirmed according to the order.
