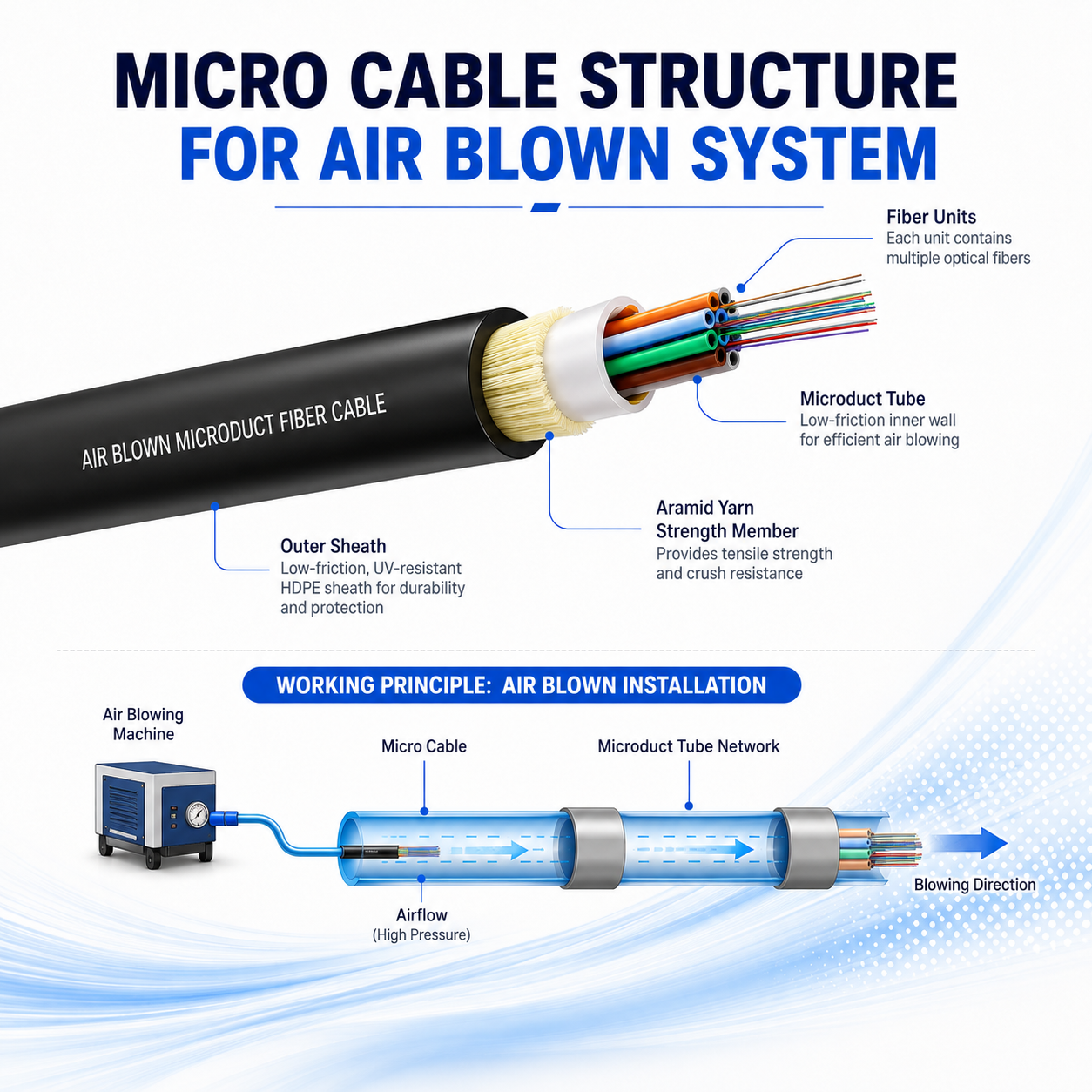

Drawing and fibre BOM
2 to 144 cores commonly supplied
Underground & Armored Fiber Cable

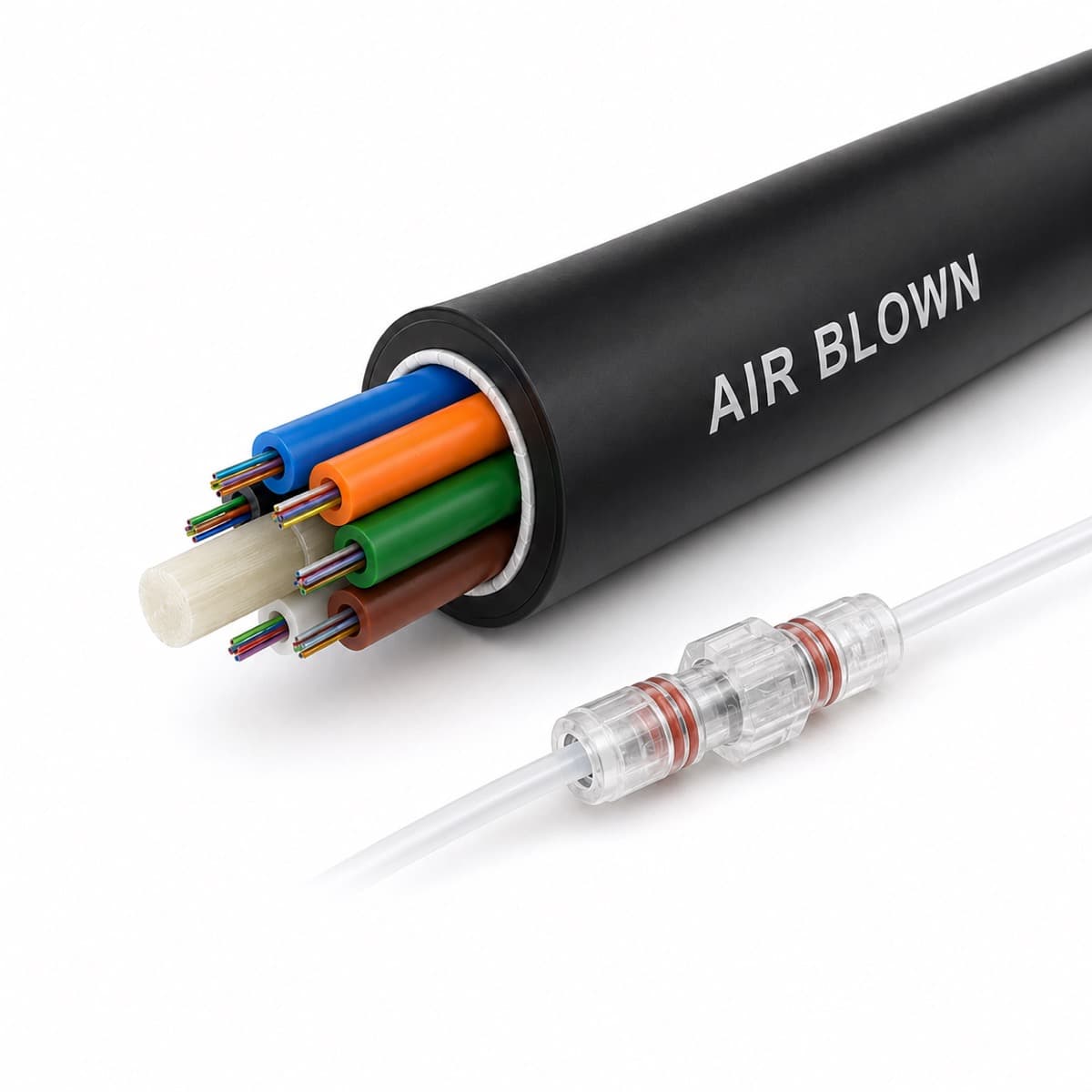

Microduct Fiber Cable (Air Blown)
Air blown microduct fiber cable is designed for microduct network construction and flexible capacity expansion.
Product Information
Key Features & Specifications
Common selection references are shown for orientation; final model parameters, construction and availability are confirmed in the quotation and agreed technical documents before ordering.
Main Features
- Factory supply for telecom and FTTH projects
- Custom specifications available according to order requirements
- Matched with related installation materials when needed
- Export packing and product marking support
Technical Specifications
| Fiber Count | 2 to 144 cores commonly supplied |
|---|---|
| Span | Microduct blowing distance depends on duct size, route and air-blowing equipment |
| Jacket | HDPE low-friction sheath for microduct installation |
| Core Type | G.652D / G.657A1 optional |
| Structure | Lightweight air-blown micro cable |
| Packing | Plywood drum or reel, length confirmed by project |
| Application | Microduct network, air-blown installation and capacity expansion |
| Operating Temperature | -40°C to +70°C |
| Testing | Optical attenuation, cable diameter and visual inspection before shipment |
| Printing | Cable marking and drum label can be customized |
| Lead Time | Usually 10 to 20 days depending on fiber count and quantity |
Our factory has CE and RoHS documentation and ISO 9001 certification. Images of these documents are available on request.
Applications
Telecom network projectsFTTH access networksISP and contractor supplyDistribution and installation projects
Jiaxin Production File
Confirm the Drawing, Tests and Packing Before Release
Production checkpoints
Air blown microduct fiber deployment
Optical and mechanical tests
HDPE low-friction sheath for microduct installation
Batch and export records
Plywood drum or reel, length confirmed by project
Technical Buyer Guide
How to Choose Armored or Direct Buried Fiber Optic Cable
Key points for selecting GYTA53, GYTS53 and GYTY53 cable for underground, direct buried and rodent-resistant routes.
Download & Inquiry
Prepare Your Product Inquiry
Download the PDF catalog or use the online catalog to compare related models, then send your required fiber count, quantity and installation route.
Product FAQ
Common Buyer Questions
What information is needed to quote Air Blown Microduct Cable?
Please send the model, fiber count, fiber type, quantity, installation method, packing requirement and destination port or country.
Can Jiaxin customize the cable specification?
Yes. Fiber count, sheath material, cable color, printing, packing and related accessories can be confirmed according to project requirements.
Can this product be supplied with matching accessories?
Yes. Jiaxin can help match closures, terminal boxes, splitters, connectors, clamps and other FTTH installation materials when needed.
How is quality checked before shipment?
Products can be checked through production inspection and optical testing before packing. Final inspection items are confirmed according to the order.
