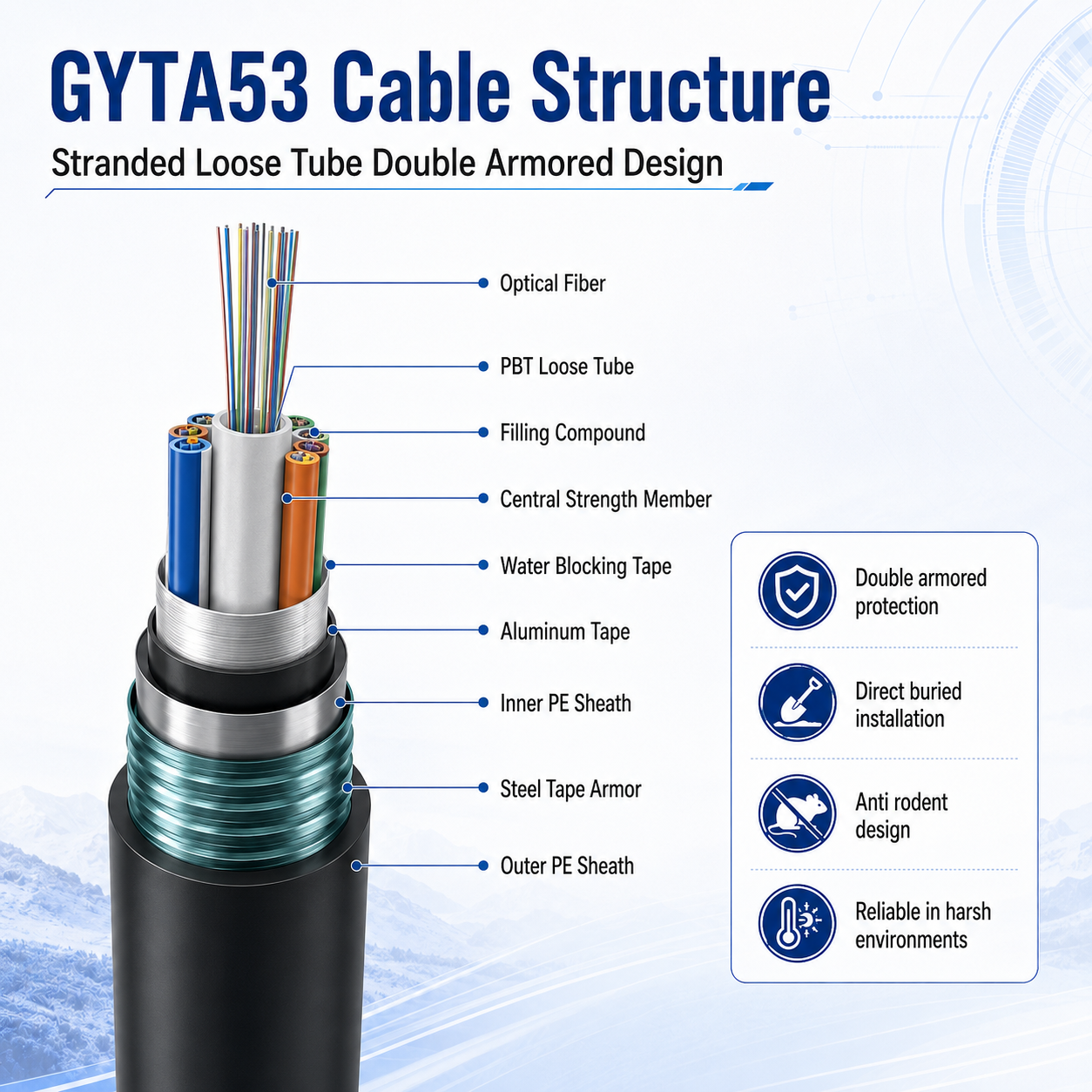

Drawing and fibre BOM
2 to 288 cores, common options 24 / 48 / 96 / 144 cores
Underground & Armored Fiber Cable

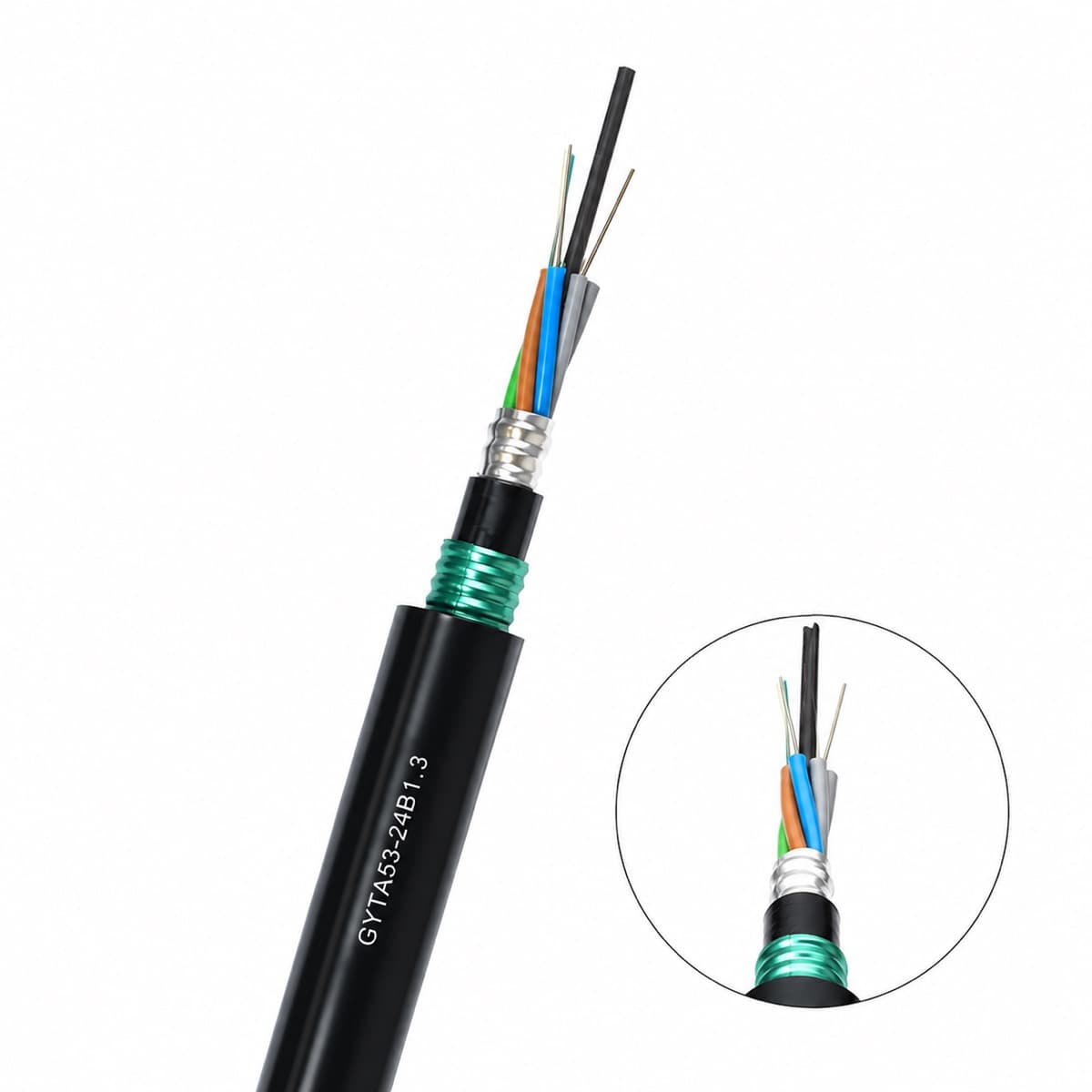

GYTA53 Armored Anti-Rodent Cable
GYTA53 armored cable is used for protected direct buried and anti-rodent fiber optic routes.
Product Information
Key Features & Specifications
Common selection references are shown for orientation; final model parameters, construction and availability are confirmed in the quotation and agreed technical documents before ordering.
Main Features
- Factory supply for telecom and FTTH projects
- Custom specifications available according to order requirements
- Matched with related installation materials when needed
- Export packing and product marking support
Technical Specifications
| Fiber Count | 2 to 288 cores, common options 24 / 48 / 96 / 144 cores |
|---|---|
| Span | Duct or direct buried route; not designed as long-span self-supporting cable |
| Jacket | Black PE / HDPE outer sheath |
| Core Type | G.652D single mode; G.657A1 / G.655 optional |
| Armoring | Corrugated steel tape / aluminum tape / double sheath according to model |
| Packing | Wooden drum or plywood drum, export packing available |
| Application | Underground duct, direct burial, anti-rodent and protected outdoor routes |
| Operating Temperature | -40°C to +70°C |
| Testing | OTDR / attenuation, continuity, sheath and drum inspection before shipment |
| Printing | Cable jacket marking, meter marking and drum label can be customized |
| Lead Time | Usually 10 to 25 days depending on fiber count, armor structure and quantity |
Our factory has CE and RoHS documentation and ISO 9001 certification. Images of these documents are available on request.
Applications
Telecom network projectsFTTH access networksISP and contractor supplyDistribution and installation projects
Jiaxin Production File
Confirm the Drawing, Tests and Packing Before Release
Production checkpoints
Armored direct buried and anti-rodent fiber routes
Optical and mechanical tests
Black PE / HDPE outer sheath
Batch and export records
Wooden drum or plywood drum, export packing available
Jiaxin manufacturing route
GYTA53 Armored Cable: Production and Inspection Plan
Jiaxin connects the selected construction to the workshop process, test plan and export handover so the quotation can move into production without missing data.
Manufacturing checkpoints
Control inner sheath, armour overlap or wire lay, outer-sheath thickness, crush resistance, water blocking and continuity of the finished protection system.Inspection plan
Confirm incoming fibre and material records, in-process dimensions and the final attenuation or OTDR sample plan. Mechanical tests are added according to the cable construction and contract.Export handover
Match finished quantity to drum or carton labels, jacket printing, packing photos and loading list. The buyer receives the agreed test records and shipping document set before dispatch.Technical Buyer Guide
How to Choose Armored or Direct Buried Fiber Optic Cable
Key points for selecting GYTA53, GYTS53 and GYTY53 cable for underground, direct buried and rodent-resistant routes.
Download & Inquiry
Prepare Your Product Inquiry
Download the PDF catalog or use the online catalog to compare related models, then send your required fiber count, quantity and installation route.
Product FAQ
Common Buyer Questions
What information is needed to quote GYTA53 Armored Cable?
Please send the model, fiber count, fiber type, quantity, installation method, packing requirement and destination port or country.
Can Jiaxin customize the cable specification?
Yes. Fiber count, sheath material, cable color, printing, packing and related accessories can be confirmed according to project requirements.
Can this product be supplied with matching accessories?
Yes. Jiaxin can help match closures, terminal boxes, splitters, connectors, clamps and other FTTH installation materials when needed.
How is quality checked before shipment?
Products can be checked through production inspection and optical testing before packing. Final inspection items are confirmed according to the order.
