FTTH Outdoor Drop Cable

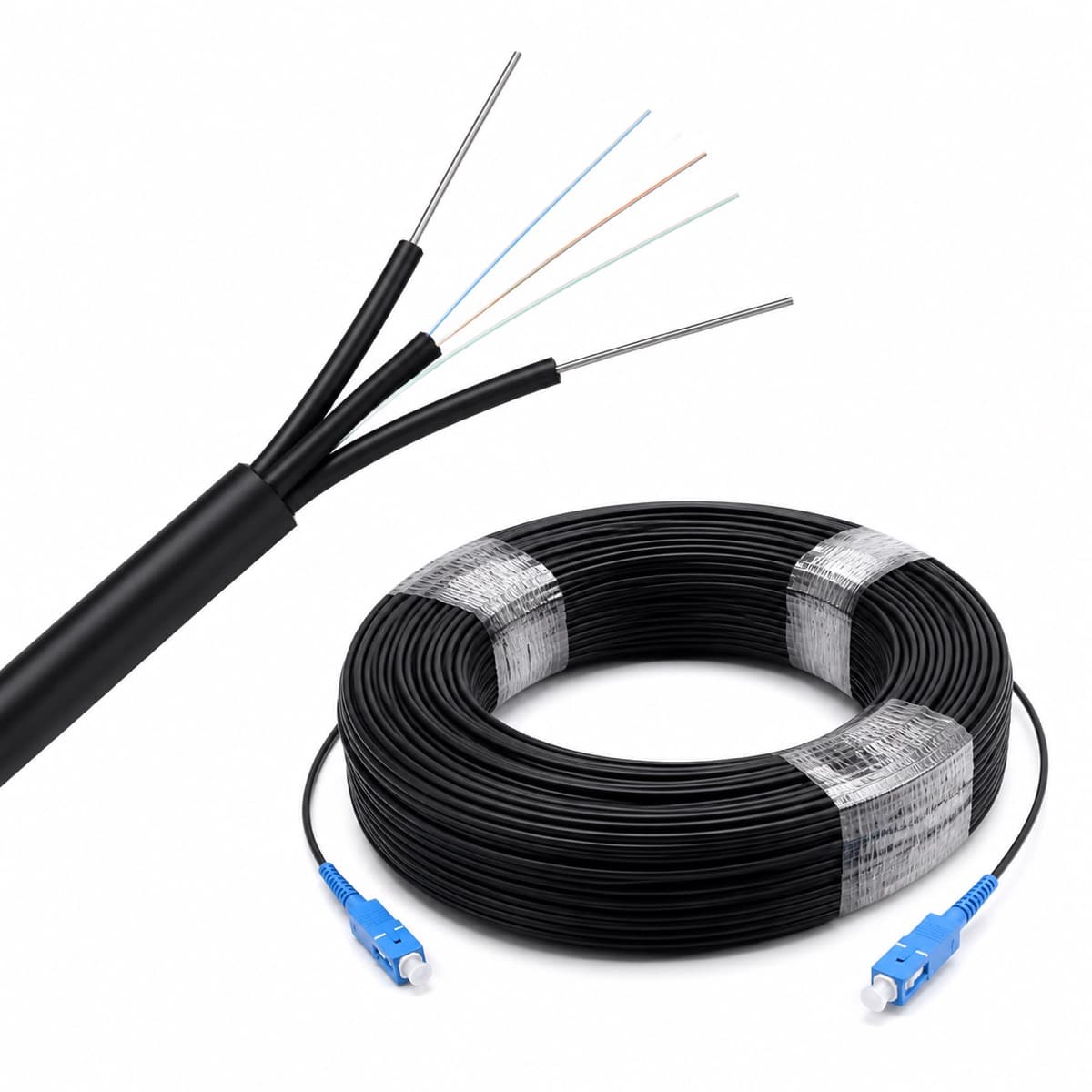

GJYXFCH Outdoor Drop Cable

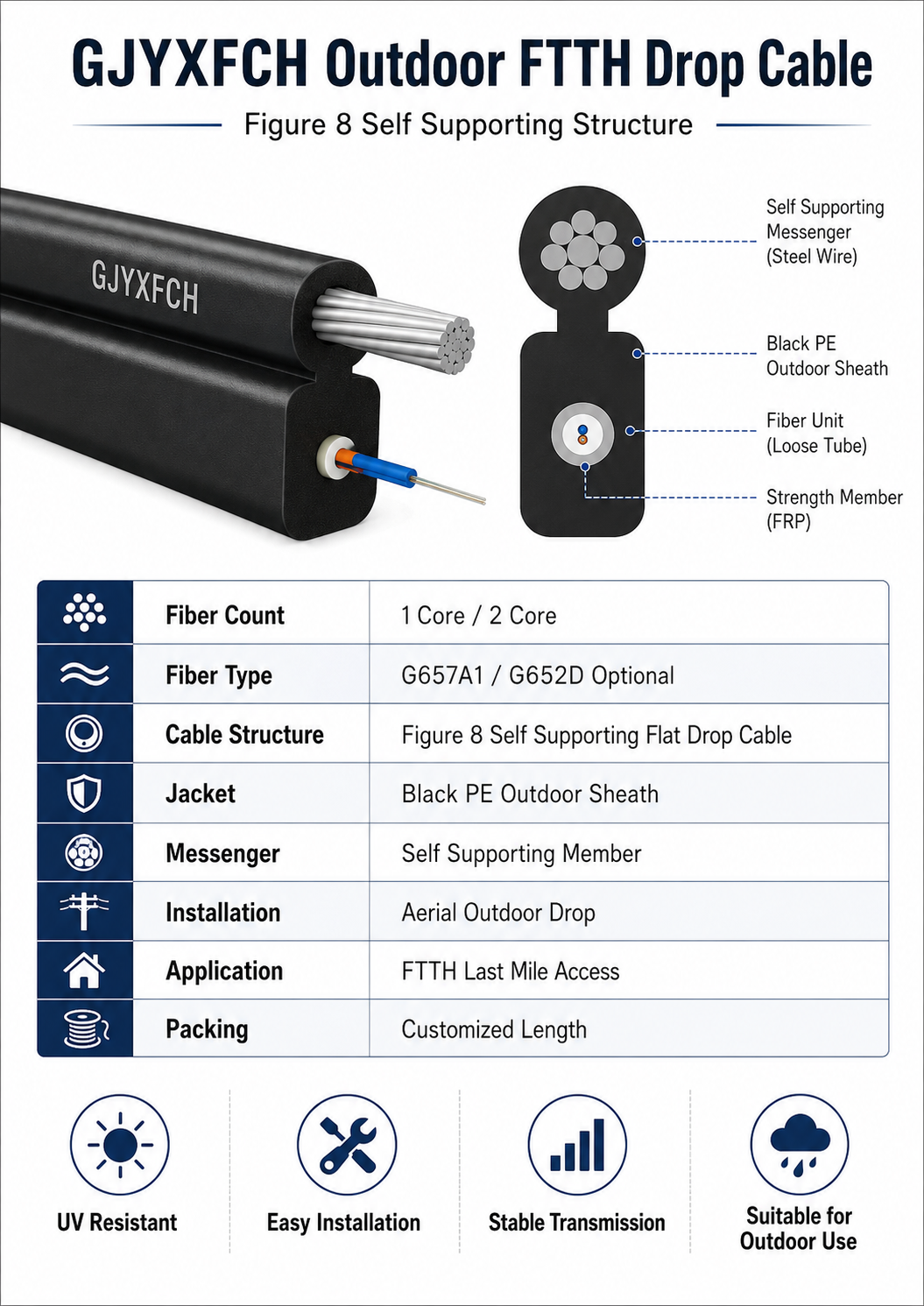

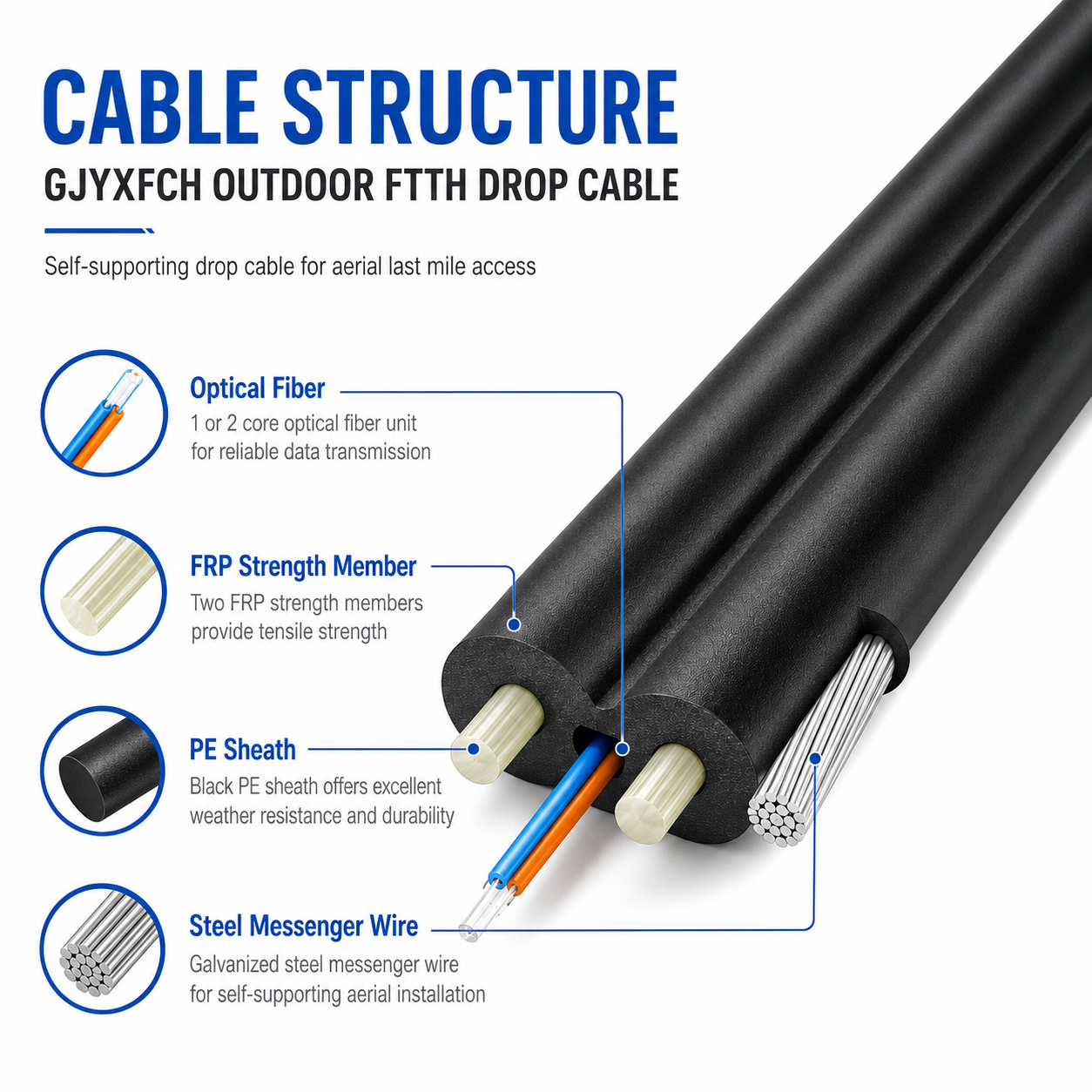

GJYXFCH outdoor drop cable is a self-supporting FTTH cable with FRP strength members for outdoor subscriber access.
Product Information
Key Features & Specifications
Common selection references are shown for orientation; final model parameters, construction and availability are confirmed in the quotation and agreed technical documents before ordering.
Main Features
- Factory supply for telecom and FTTH projects
- Custom specifications available according to order requirements
- Matched with related installation materials when needed
- Export packing and product marking support
Technical Specifications
| Fiber Count | 1 / 2 / 4 cores commonly supplied |
|---|---|
| Span | Self-supporting outdoor drop route, commonly 30 m to 80 m |
| Jacket | Black LSZH / PE, UV-resistant outdoor sheath available |
| Core Type | G.657A1 / G.657A2 bend-insensitive fiber commonly used |
| Strength Member | Steel wire or FRP strength member with messenger wire according to model |
| Packing | 1 km / 2 km drum or reel, export carton and pallet available |
| Application | Outdoor FTTH last-mile connection from pole or distribution point to user premises |
| Operating Temperature | -40°C to +70°C |
| Testing | Optical attenuation, tensile-related order inspection and visual check before shipment |
| Printing | Cable jacket marking, reel label and carton label can be customized |
| Lead Time | Usually 5 to 15 days depending on quantity and packing requirement |
Our factory has CE and RoHS documentation and ISO 9001 certification. Images of these documents are available on request.
Applications
Telecom network projectsFTTH access networksISP and contractor supplyDistribution and installation projects
Jiaxin Production File
Confirm the Drawing, Tests and Packing Before Release
Production checkpoints
Outdoor FTTH access with non-metallic strength member
Optical and mechanical tests
Black LSZH / PE, UV-resistant outdoor sheath available
Batch and export records
1 km / 2 km drum or reel, export carton and pallet available
Jiaxin manufacturing route
GJYXFCH Outdoor Drop Cable: Production and Inspection Plan
Jiaxin connects the selected construction to the workshop process, test plan and export handover so the quotation can move into production without missing data.
Manufacturing checkpoints
Control messenger or strength-member alignment, web dimensions, sheath adhesion, tensile performance and compatibility with the selected drop hardware.Inspection plan
Confirm incoming fibre and material records, in-process dimensions and the final attenuation or OTDR sample plan. Mechanical tests are added according to the cable construction and contract.Export handover
Match finished quantity to drum or carton labels, jacket printing, packing photos and loading list. The buyer receives the agreed test records and shipping document set before dispatch.Technical Buyer Guide
Indoor vs Outdoor FTTH Drop Cable: What Buyers Should Confirm Before Ordering
Understand the difference between GJXH, GJXFH, GJYXCH and GJYXFCH drop cable for subscriber access projects.
Download & Inquiry
Prepare Your Product Inquiry
Download the PDF catalog or use the online catalog to compare related models, then send your required fiber count, quantity and installation route.
Product FAQ
Common Buyer Questions
What information is needed to quote GJYXFCH Outdoor Drop Cable?
Please send the model, fiber count, fiber type, quantity, installation method, packing requirement and destination port or country.
Can Jiaxin customize the cable specification?
Yes. Fiber count, sheath material, cable color, printing, packing and related accessories can be confirmed according to project requirements.
Can this product be supplied with matching accessories?
Yes. Jiaxin can help match closures, terminal boxes, splitters, connectors, clamps and other FTTH installation materials when needed.
How is quality checked before shipment?
Products can be checked through production inspection and optical testing before packing. Final inspection items are confirmed according to the order.
