Fiber count
2 to 288 cores, common options 24 / 48 / 96 / 144 cores
Confirm the core count, common options and future expansion reserve.
Underground & Armored Fiber Cable

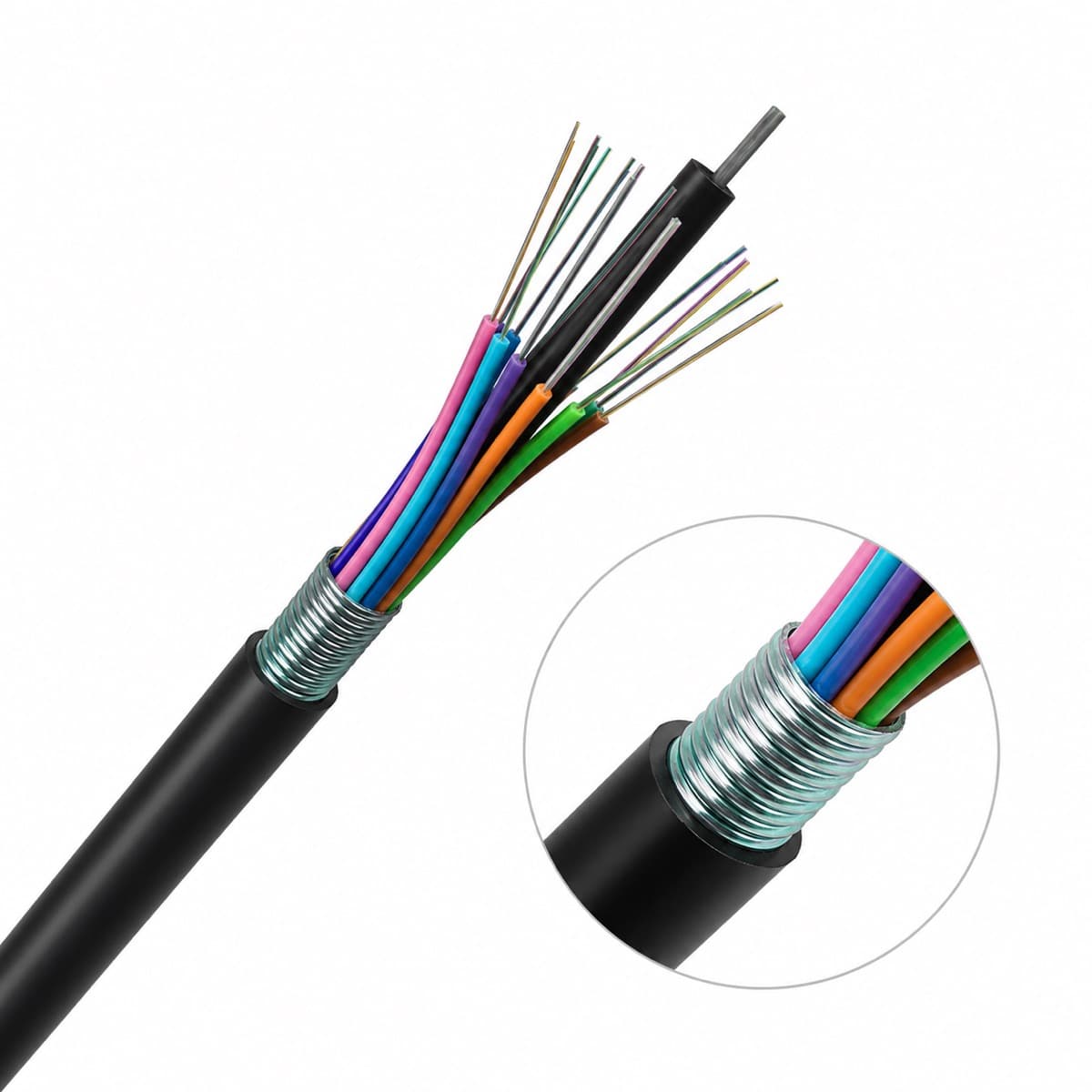

Duct Fiber Cable GYTS
GYTS duct fiber cable is used for duct installation and outdoor backbone fiber routes.
Product Information
Key Features & Specifications
Main Features
- Factory supply for telecom and FTTH projects
- Custom specifications available according to order requirements
- Matched with related installation materials when needed
- Export packing and product marking support
Technical Specifications
| Fiber Count | 2 to 288 cores, common options 24 / 48 / 96 / 144 cores |
|---|---|
| Span | Duct or direct buried route; not designed as long-span self-supporting cable |
| Jacket | Black PE / HDPE outer sheath |
| Core Type | G.652D single mode; G.657A1 / G.655 optional |
| Armoring | Corrugated steel tape / aluminum tape / double sheath according to model |
| Standard | IEC 60794 / ITU-T fiber standards; project standard can be confirmed |
| Packing | Wooden drum or plywood drum, export packing available |
| Application | Underground duct, direct burial, anti-rodent and protected outdoor routes |
| Operating Temperature | -40°C to +70°C |
| Testing | OTDR / attenuation, continuity, sheath and drum inspection before shipment |
| Printing | Cable jacket marking, meter marking and drum label can be customized |
| Lead Time | Usually 10 to 25 days depending on fiber count, armor structure and quantity |
Applications
Telecom network projectsFTTH access networksISP and contractor supplyDistribution and installation projects
Buyer Selection Guide
How to Confirm This Product for Your Project
Installation route
Duct installation and outdoor backbone fiber routes
Tell us whether the route is aerial, duct, direct buried, indoor or FTTH last-mile.Sheath and environment
Black PE / HDPE outer sheath
Confirm UV, LSZH, PE, anti-rodent, anti-tracking or flame-retardant requirements.Packing and marking
Wooden drum or plywood drum, export packing available
Confirm drum length, carton or pallet packing, jacket printing and label needs.Technical Buyer Guide
How to Choose Armored or Direct Buried Fiber Optic Cable
Key points for selecting GYTA53, GYTS53 and GYTY53 cable for underground, direct buried and rodent-resistant routes.
Download & Inquiry
Prepare Your Product Inquiry
Download the PDF catalog or use the online catalog to compare related models, then send your required fiber count, quantity and installation route.
Product FAQ
Common Buyer Questions
What information is needed to quote GYTS Duct Fiber Cable?
Please send the model, fiber count, fiber type, quantity, installation method, packing requirement and destination port or country.
Can Jiaxin customize the cable specification?
Yes. Fiber count, sheath material, cable color, printing, packing and related accessories can be confirmed according to project requirements.
Can this product be supplied with matching accessories?
Yes. Jiaxin can help match closures, terminal boxes, splitters, connectors, clamps and other FTTH installation materials when needed.
How is quality checked before shipment?
Products can be checked through production inspection and optical testing before packing. Final inspection items are confirmed according to the order.
