Drawing and fibre BOM
2 to 288 cores, common options 24 / 48 / 96 / 144 cores
Underground & Armored Fiber Cable

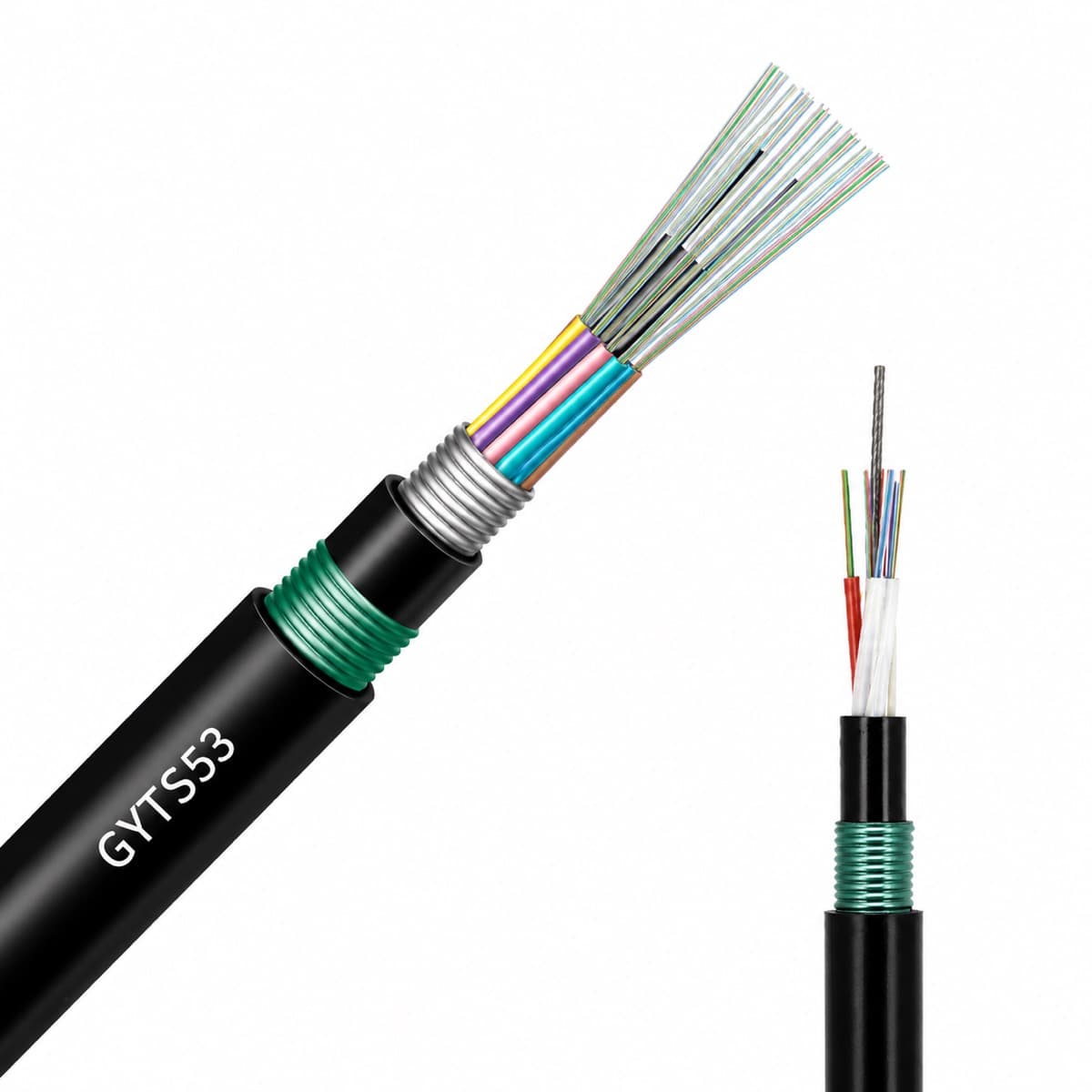

GYTS53 Armored Anti-Rodent Cable
GYTS53 armored cable is supplied for underground routes where mechanical protection and anti-rodent performance are required.
Product Information
Key Features & Specifications
Common selection references are shown for orientation; final model parameters, construction and availability are confirmed in the quotation and agreed technical documents before ordering.
Main Features
- Factory supply for telecom and FTTH projects
- Custom specifications available according to order requirements
- Matched with related installation materials when needed
- Export packing and product marking support
Technical Specifications
| Fiber Count | 2 to 288 cores, common options 24 / 48 / 96 / 144 cores |
|---|---|
| Span | Duct or direct buried route; not designed as long-span self-supporting cable |
| Jacket | Black PE / HDPE outer sheath |
| Core Type | G.652D single mode; G.657A1 / G.655 optional |

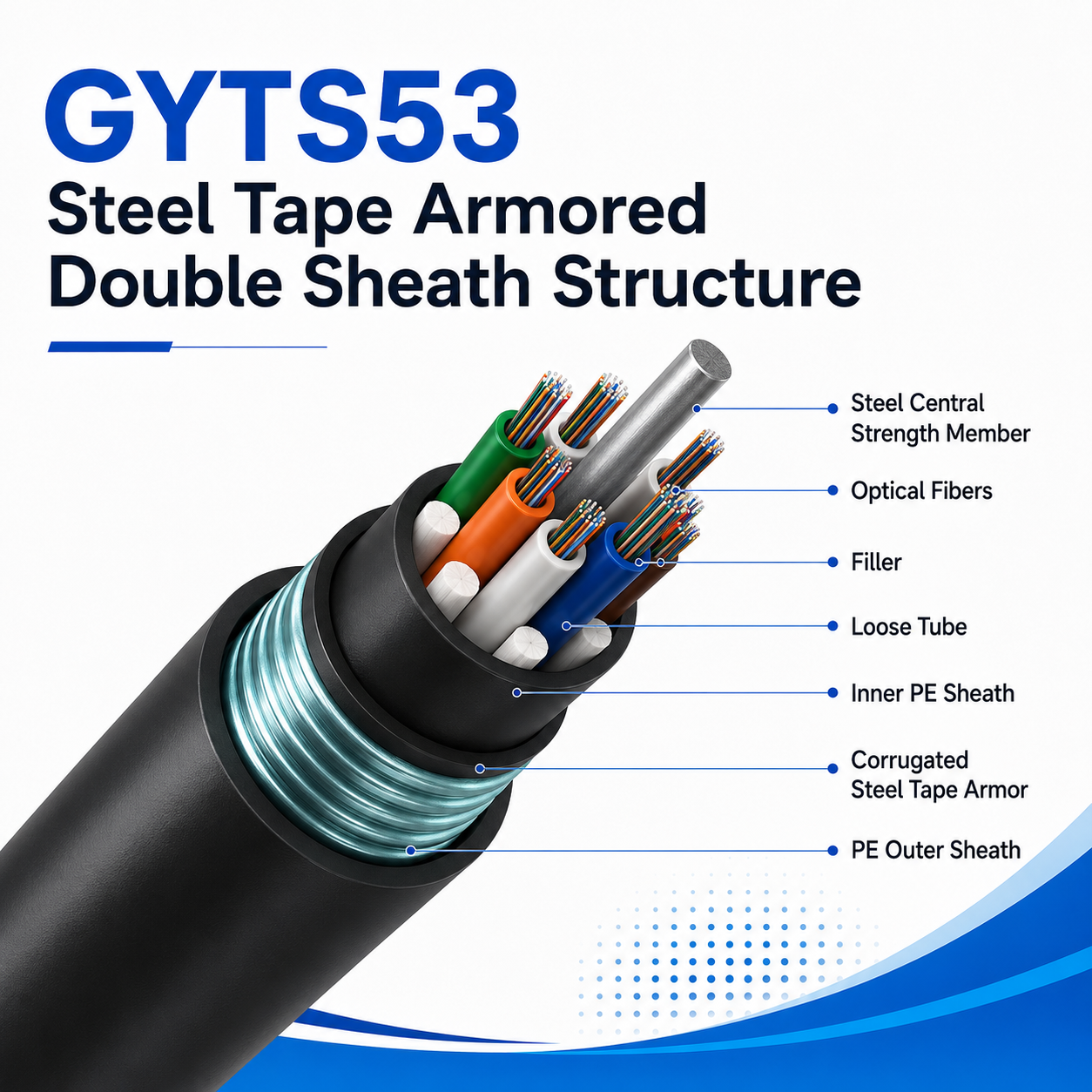

| Armoring | Corrugated steel tape / aluminum tape / double sheath according to model |
| Packing | Wooden drum or plywood drum, export packing available |
| Application | Underground duct, direct burial, anti-rodent and protected outdoor routes |
| Operating Temperature | -40°C to +70°C |
| Testing | OTDR / attenuation, continuity, sheath and drum inspection before shipment |
| Printing | Cable jacket marking, meter marking and drum label can be customized |
| Lead Time | Usually 10 to 25 days depending on fiber count, armor structure and quantity |
Our factory has CE and RoHS documentation and ISO 9001 certification. Images of these documents are available on request.
Applications
Telecom network projectsFTTH access networksISP and contractor supplyDistribution and installation projects
Jiaxin Production File
Confirm the Drawing, Tests and Packing Before Release
Production checkpoints
Steel tape armored underground and anti-rodent installation
Optical and mechanical tests
Black PE / HDPE outer sheath
Batch and export records
Wooden drum or plywood drum, export packing available
Technical Buyer Guide
How to Choose Armored or Direct Buried Fiber Optic Cable
Key points for selecting GYTA53, GYTS53 and GYTY53 cable for underground, direct buried and rodent-resistant routes.
Download & Inquiry
Prepare Your Product Inquiry
Download the PDF catalog or use the online catalog to compare related models, then send your required fiber count, quantity and installation route.
Product FAQ
Common Buyer Questions
What information is needed to quote GYTS53 Armored Cable?
Please send the model, fiber count, fiber type, quantity, installation method, packing requirement and destination port or country.
Can Jiaxin customize the cable specification?
Yes. Fiber count, sheath material, cable color, printing, packing and related accessories can be confirmed according to project requirements.
Can this product be supplied with matching accessories?
Yes. Jiaxin can help match closures, terminal boxes, splitters, connectors, clamps and other FTTH installation materials when needed.
How is quality checked before shipment?
Products can be checked through production inspection and optical testing before packing. Final inspection items are confirmed according to the order.
