Outdoor Fiber Optic Cable

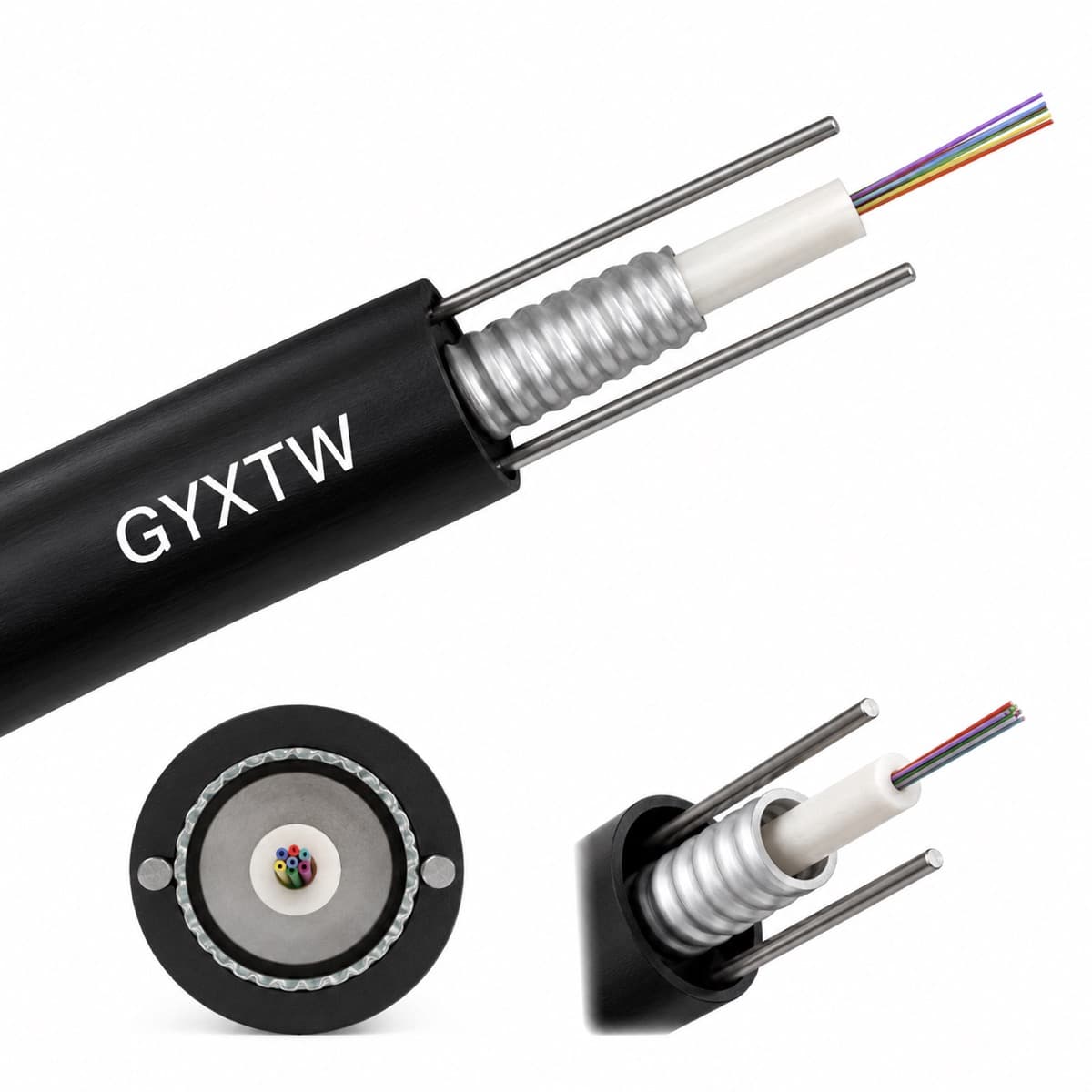

GYXTW Outdoor Fiber Optic Cable

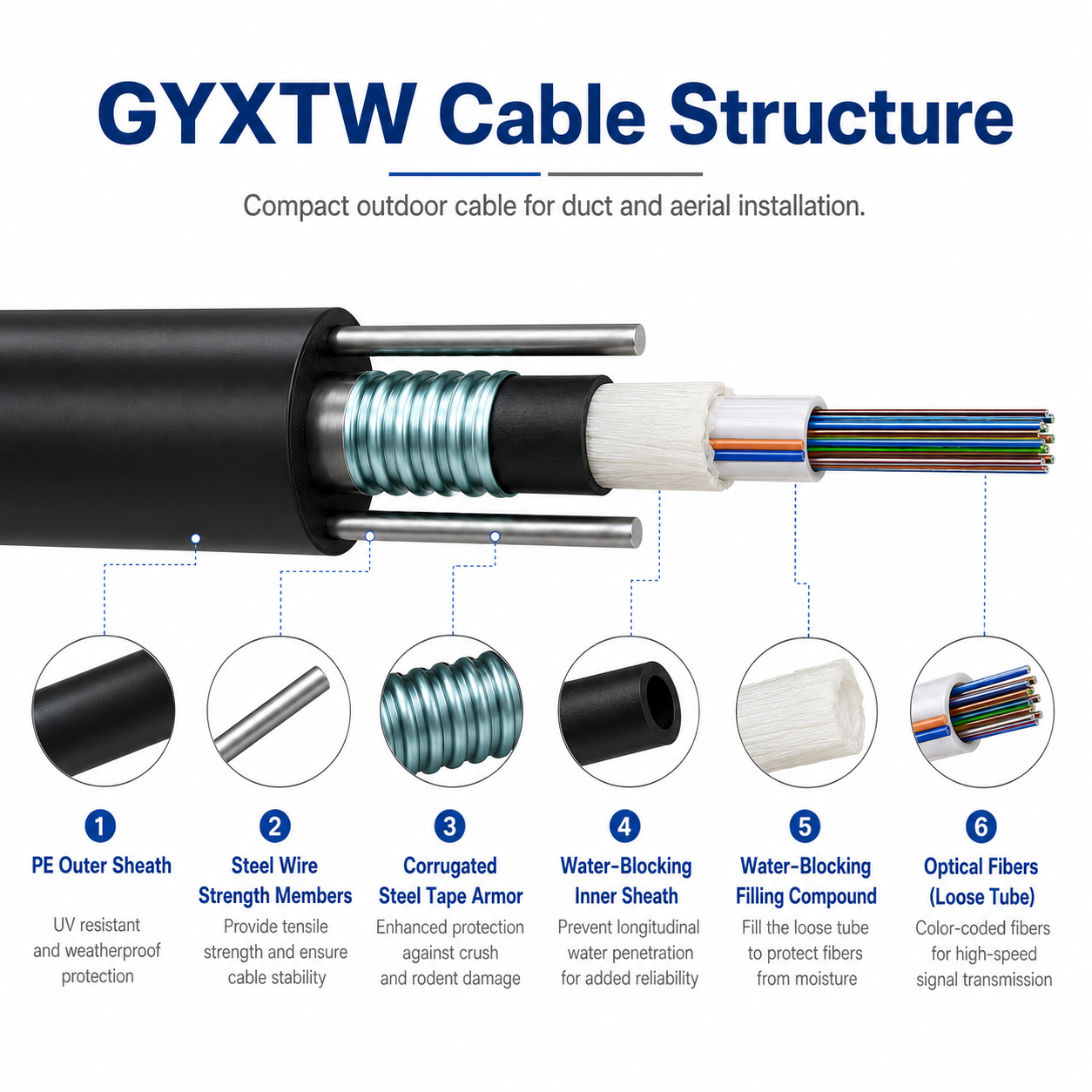

GYXTW outdoor fiber optic cable is a central loose tube cable for outdoor telecom distribution, duct routes and aerial routes.
Product Information
Key Features & Specifications
Common selection references are shown for orientation; final model parameters, construction and availability are confirmed in the quotation and agreed technical documents before ordering.
Main Features
- Factory supply for telecom and FTTH projects
- Custom specifications available according to order requirements
- Matched with related installation materials when needed
- Export packing and product marking support
Technical Specifications
| Fiber Count | 2 to 288 cores, higher fiber count can be confirmed by project |
|---|---|
| Span | Aerial or duct route, span depends on cable structure and installation method |
| Jacket | Black PE / HDPE outdoor sheath, UV-resistant |
| Core Type | G.652D single mode; G.657A1 / G.655 optional |
| Structure | Central tube or stranded loose tube according to model |
| Packing | Wooden drum or plywood drum, common length 2 km to 4 km per drum |
| Application | Outdoor backbone, duct, aerial and distribution network |
| Operating Temperature | -40°C to +70°C |
| Testing | OTDR / attenuation, continuity and drum inspection before shipment |
| Printing | Cable jacket marking, meter marking and drum label can be customized |
| Lead Time | Usually 10 to 25 days depending on fiber count and order quantity |
Our factory has CE and RoHS documentation and ISO 9001 certification. Images of these documents are available on request.
Applications
Telecom network projectsFTTH access networksISP and contractor supplyDistribution and installation projects
Jiaxin Production File
Confirm the Drawing, Tests and Packing Before Release
Production checkpoints
Outdoor distribution and telecom network routes
Optical and mechanical tests
Black PE / HDPE outdoor sheath, UV-resistant
Batch and export records
Wooden drum or plywood drum, common length 2 km to 4 km per drum
Jiaxin manufacturing route
GYXTW Outdoor Cable: Production and Inspection Plan
Jiaxin connects the selected construction to the workshop process, test plan and export handover so the quotation can move into production without missing data.
Manufacturing checkpoints
Control loose-tube geometry, filling or water blocking, stranding pitch, armour or screen application, sheath thickness and finished drum length.Inspection plan
Confirm incoming fibre and material records, in-process dimensions and the final attenuation or OTDR sample plan. Mechanical tests are added according to the cable construction and contract.Export handover
Match finished quantity to drum or carton labels, jacket printing, packing photos and loading list. The buyer receives the agreed test records and shipping document set before dispatch.Technical Buyer Guide
GYTA vs GYTS vs GYXTW: Which Outdoor Cable Structure Fits Your Route?
A route-based comparison of GYTA aluminium-tape, GYTS steel-tape and compact GYXTW central-tube outdoor cable structures for duct, aerial and distribution projects.
Download & Inquiry
Prepare Your Product Inquiry
Download the PDF catalog or use the online catalog to compare related models, then send your required fiber count, quantity and installation route.
Product FAQ
Common Buyer Questions
What information is needed to quote GYXTW Outdoor Cable?
Please send the model, fiber count, fiber type, quantity, installation method, packing requirement and destination port or country.
Can Jiaxin customize the cable specification?
Yes. Fiber count, sheath material, cable color, printing, packing and related accessories can be confirmed according to project requirements.
Can this product be supplied with matching accessories?
Yes. Jiaxin can help match closures, terminal boxes, splitters, connectors, clamps and other FTTH installation materials when needed.
How is quality checked before shipment?
Products can be checked through production inspection and optical testing before packing. Final inspection items are confirmed according to the order.
