OPGW Fiber Optic Cable

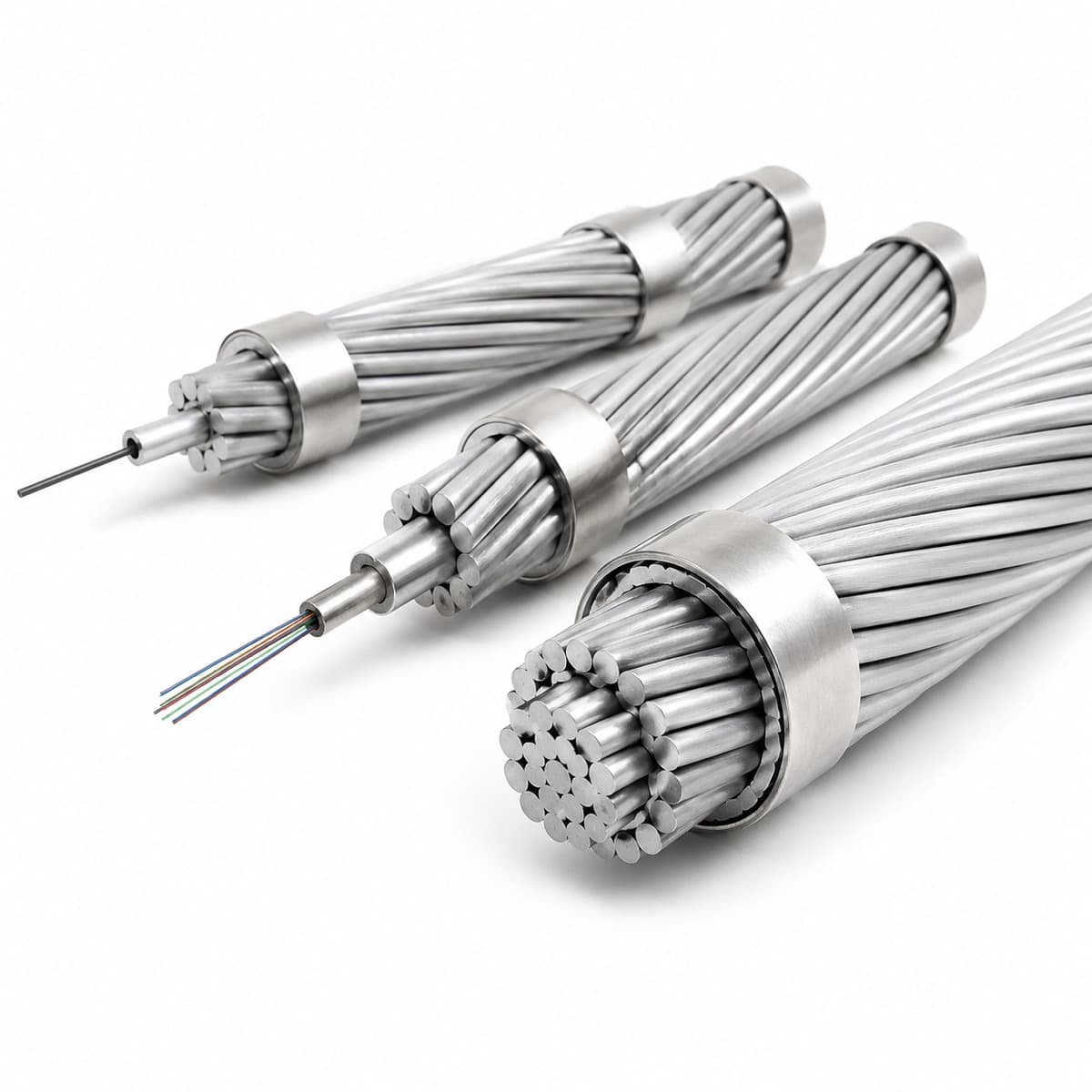

Unitube OPGW Fiber Optic Cable
Unitube OPGW integrates optical communication with ground wire function for power transmission networks.
Product Information
Key Features & Specifications
Common selection references are shown for orientation; final model parameters, construction and availability are confirmed in the quotation and agreed technical documents before ordering.
Main Features
- Factory supply for telecom and FTTH projects
- Custom specifications available according to order requirements
- Matched with related installation materials when needed
- Export packing and product marking support

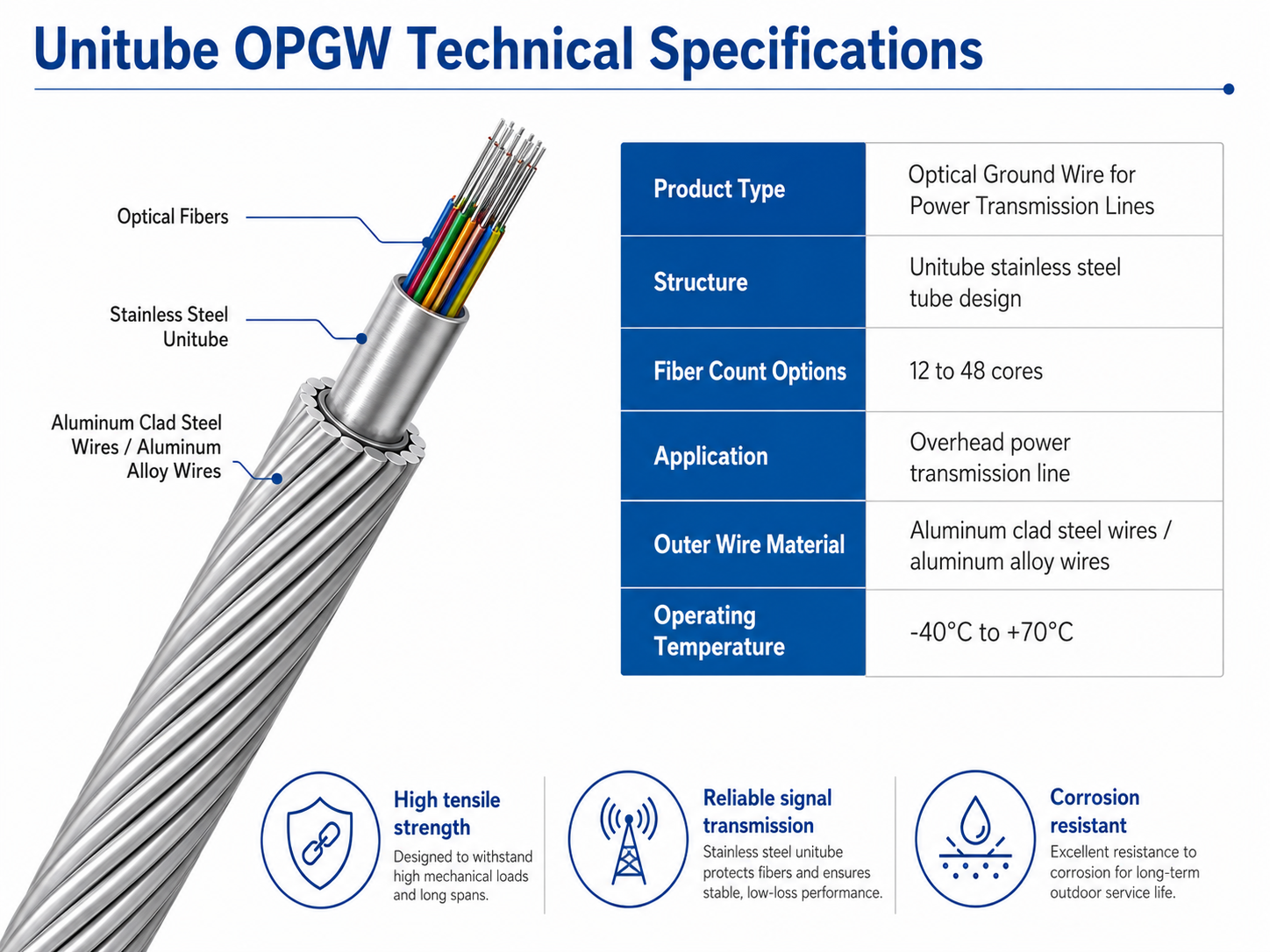

Technical Specifications
| Fiber Count | 12 to 144 cores commonly supplied, confirmed by power line design |
|---|---|
| Span | Power transmission line span, project dependent |
| Jacket | No plastic jacket; stainless steel tube with aluminum-clad steel / aluminum alloy wires |
| Core Type | G.652D / G.655 / G.657A1 optional |

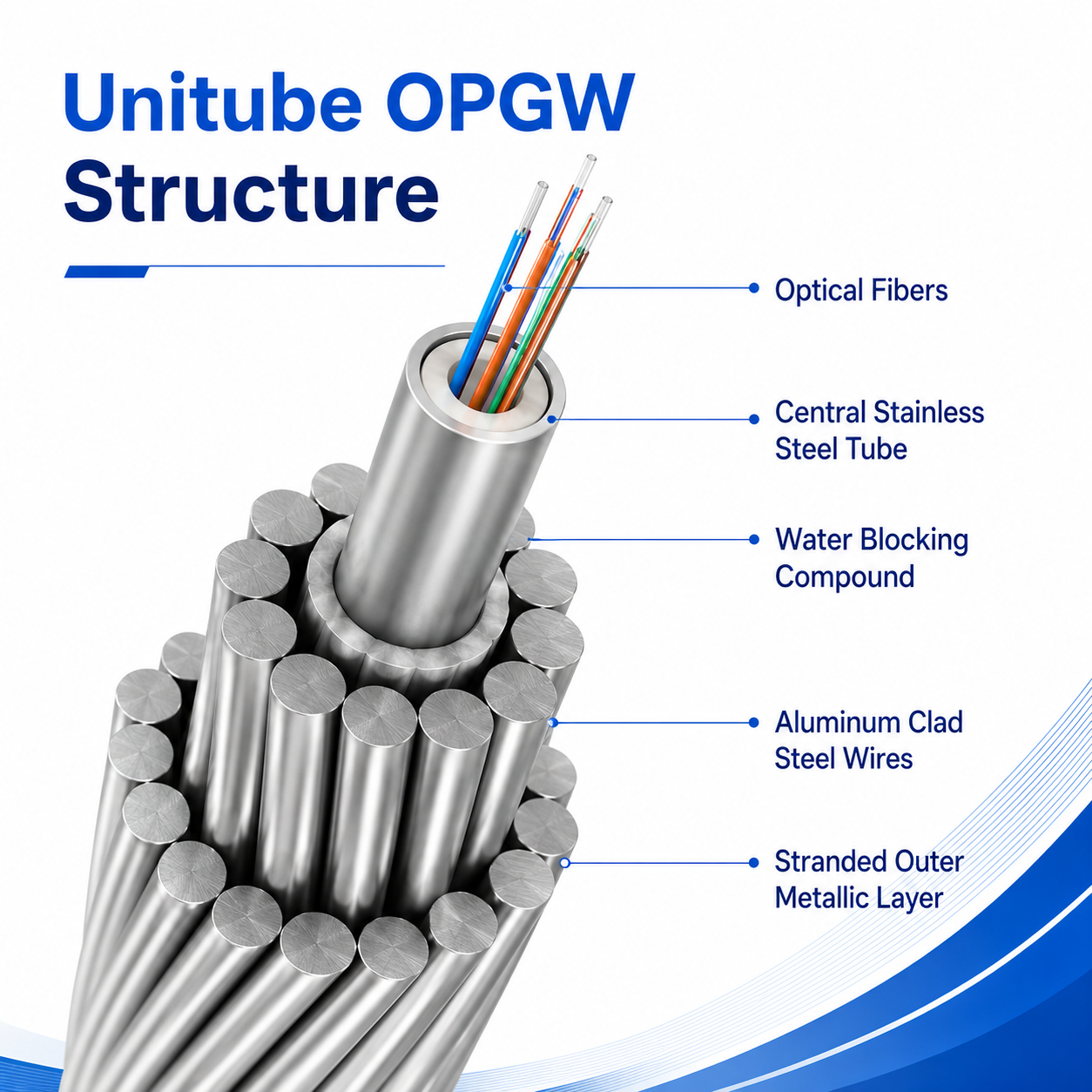

| Structure | Unitube or stranded optical ground wire |
| Packing | Steel or wooden drum for power project delivery |
| Application | Power transmission communication, grounding and overhead optical network |
| Operating Temperature | -40°C to +80°C |
| Testing | Optical test and project inspection items confirmed by power line requirement |
| Printing | Drum marking and project label can be customized |
| Lead Time | Confirmed according to OPGW design, conductor data and quantity |
Our factory has CE and RoHS documentation and ISO 9001 certification. Images of these documents are available on request.
Applications
Telecom network projectsFTTH access networksISP and contractor supplyDistribution and installation projects
Jiaxin Production File
Confirm the Drawing, Tests and Packing Before Release
Production checkpoints
Power transmission communication networks
Optical and mechanical tests
No plastic jacket; stainless steel tube with aluminum-clad steel / aluminum alloy wires
Batch and export records
Steel or wooden drum for power project delivery
Download & Inquiry
Prepare Your Product Inquiry
Download the PDF catalog or use the online catalog to compare related models, then send your required fiber count, quantity and installation route.
Product FAQ
Common Buyer Questions
What information is needed to quote Unitube OPGW?
Please send the model, fiber count, fiber type, quantity, installation method, packing requirement and destination port or country.
Can Jiaxin customize the cable specification?
Yes. Fiber count, sheath material, cable color, printing, packing and related accessories can be confirmed according to project requirements.
Can this product be supplied with matching accessories?
Yes. Jiaxin can help match closures, terminal boxes, splitters, connectors, clamps and other FTTH installation materials when needed.
How is quality checked before shipment?
Products can be checked through production inspection and optical testing before packing. Final inspection items are confirmed according to the order.
