Drawing and fibre BOM
12 to 288 fibers, customized
Underground & Armored Fiber Cable

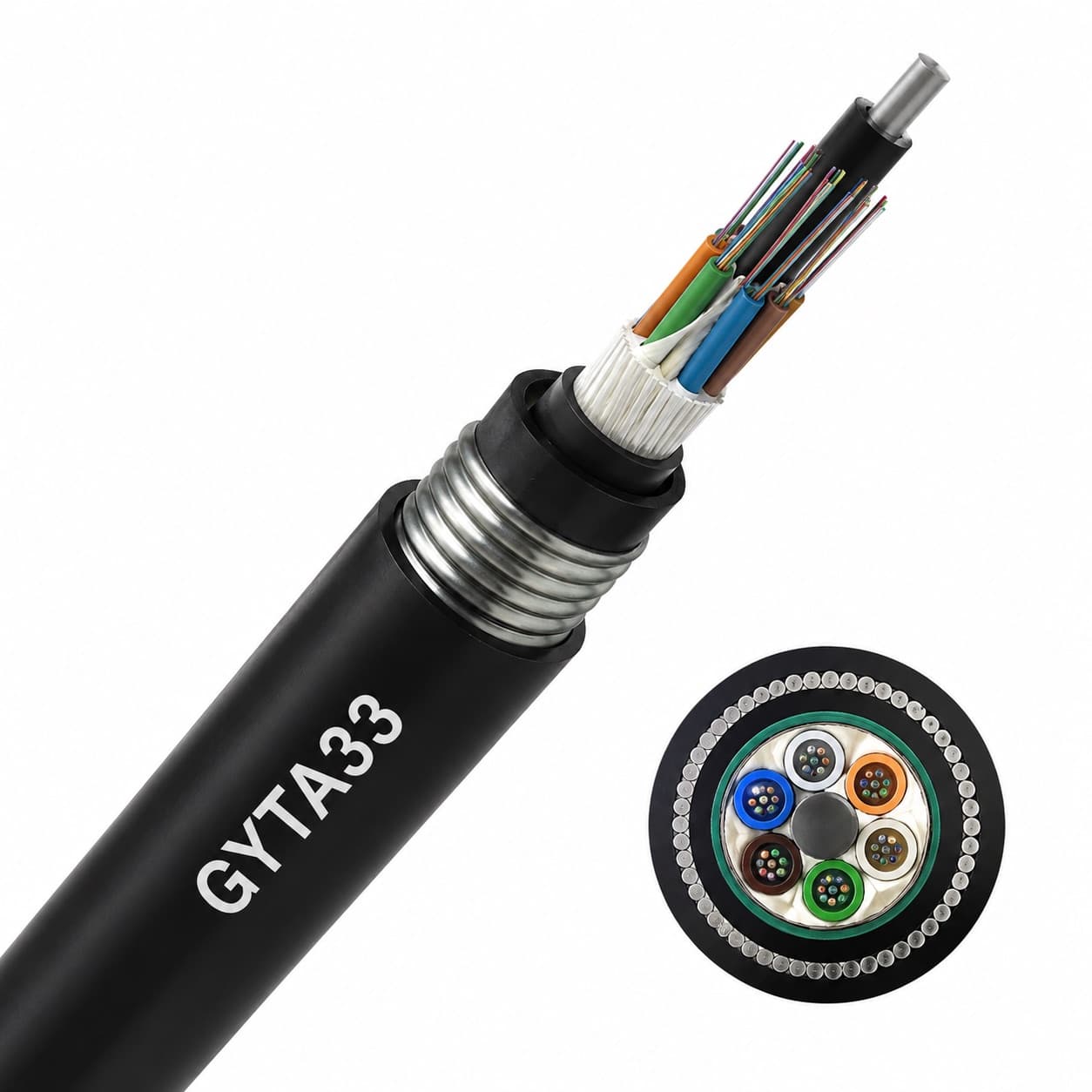

GYTA33 Steel Wire Armored Fiber Optic Cable
GYTA33 is a stranded loose tube optical cable with aluminum moisture barrier and steel wire armor for underground and heavy-duty route protection.
Product Information
Key Features & Specifications
Common selection references are shown for orientation; final model parameters, construction and availability are confirmed in the quotation and agreed technical documents before ordering.

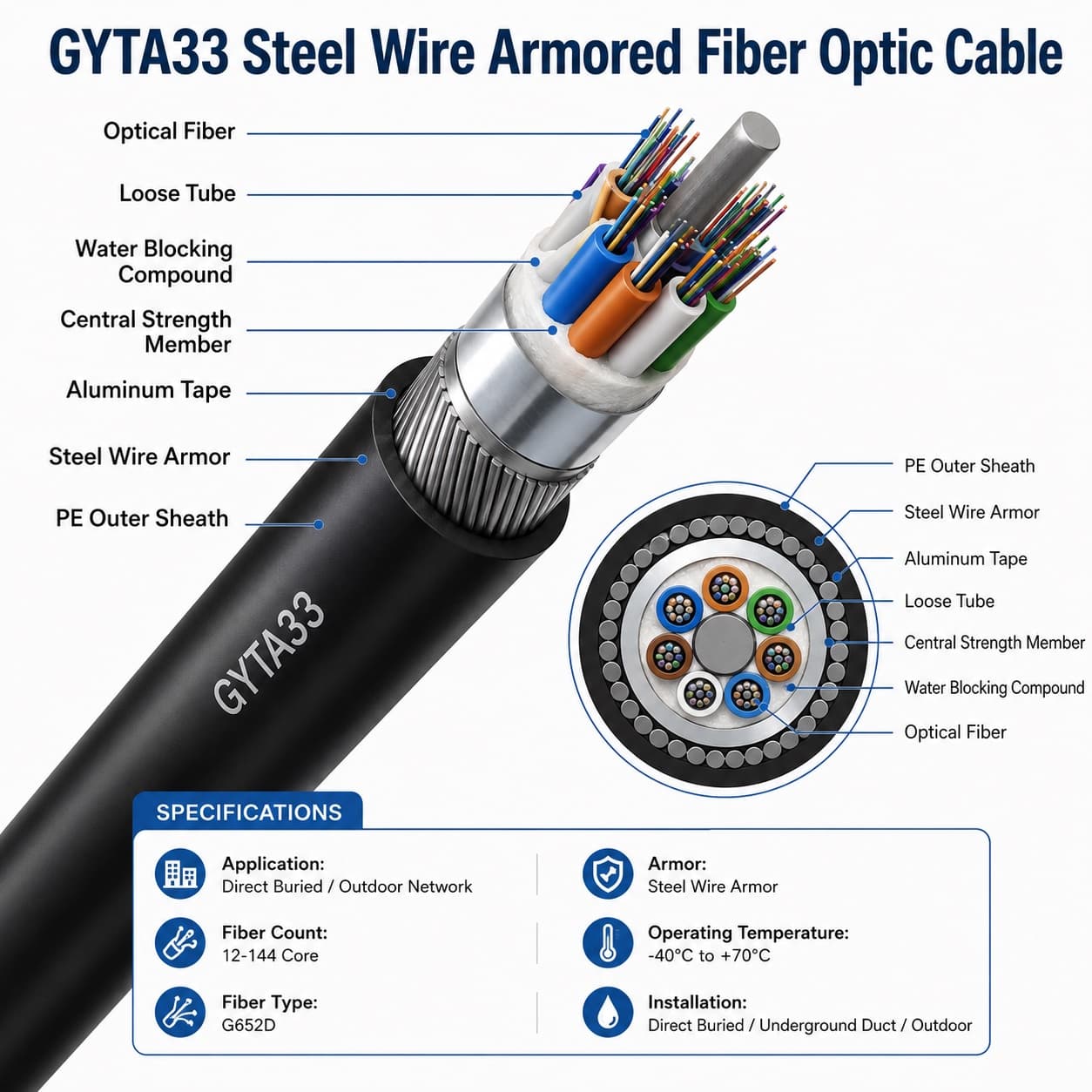

Main Features
- Stranded loose tube cable core
- Aluminum moisture barrier
- Steel wire armor for crush and tensile protection
- Double PE sheath structure
- Project parameters confirmed for water or river-crossing routes
Technical Specifications
| Fiber Count | 12 to 288 fibers, customized |
|---|---|
| Span | Duct or direct buried route; not designed as long-span self-supporting cable |
| Jacket | Black PE / HDPE outer sheath |
| Core Type | G.652D single mode; G.657A1 / G.655 optional |
| Armoring | Corrugated steel tape / aluminum tape / double sheath according to model |
| Packing | Wooden drum or plywood drum, export packing available |
| Application | Underground duct, direct burial, anti-rodent and protected outdoor routes |
| Operating Temperature | -40°C to +70°C |
| Testing | Optical, tensile, crush and water-blocking inspection |
| Printing | Cable jacket marking, meter marking and drum label can be customized |
| Lead Time | Usually 10 to 25 days depending on fiber count, armor structure and quantity |
| Fiber Type | G.652D or G.657A1 |
| Structure | Stranded loose tubes |
| Moisture Barrier | Aluminum tape |
| Armor | Steel wire armor |
| Outer Sheath | Black PE |
| Installation | Direct buried or engineered water-crossing route |
Our factory has CE and RoHS documentation and ISO 9001 certification. Images of these documents are available on request.
Applications
Direct-buried backbone routesRiver and channel crossingsHigh mechanical-risk corridorsLong-distance telecom networks
Jiaxin Production File
Confirm the Drawing, Tests and Packing Before Release
Production checkpoints
Direct-buried, river-crossing and other heavy-duty protected routes
Optical and mechanical tests
Black PE / HDPE outer sheath
Batch and export records
Wooden drum or plywood drum, export packing available
Technical Buyer Guide
How to Choose Armored or Direct Buried Fiber Optic Cable
Key points for selecting GYTA53, GYTS53 and GYTY53 cable for underground, direct buried and rodent-resistant routes.
Download & Inquiry
Prepare Your Product Inquiry
Download the PDF catalog or use the online catalog to compare related models, then send your required fiber count, quantity and installation route.
Product FAQ
Common Buyer Questions
What information is needed to quote GYTA33 Armored Cable?
Please send the model, fiber count, fiber type, quantity, installation method, packing requirement and destination port or country.
Can Jiaxin customize the cable specification?
Yes. Fiber count, sheath material, cable color, printing, packing and related accessories can be confirmed according to project requirements.
Can this product be supplied with matching accessories?
Yes. Jiaxin can help match closures, terminal boxes, splitters, connectors, clamps and other FTTH installation materials when needed.
How is quality checked before shipment?
Products can be checked through production inspection and optical testing before packing. Final inspection items are confirmed according to the order.
